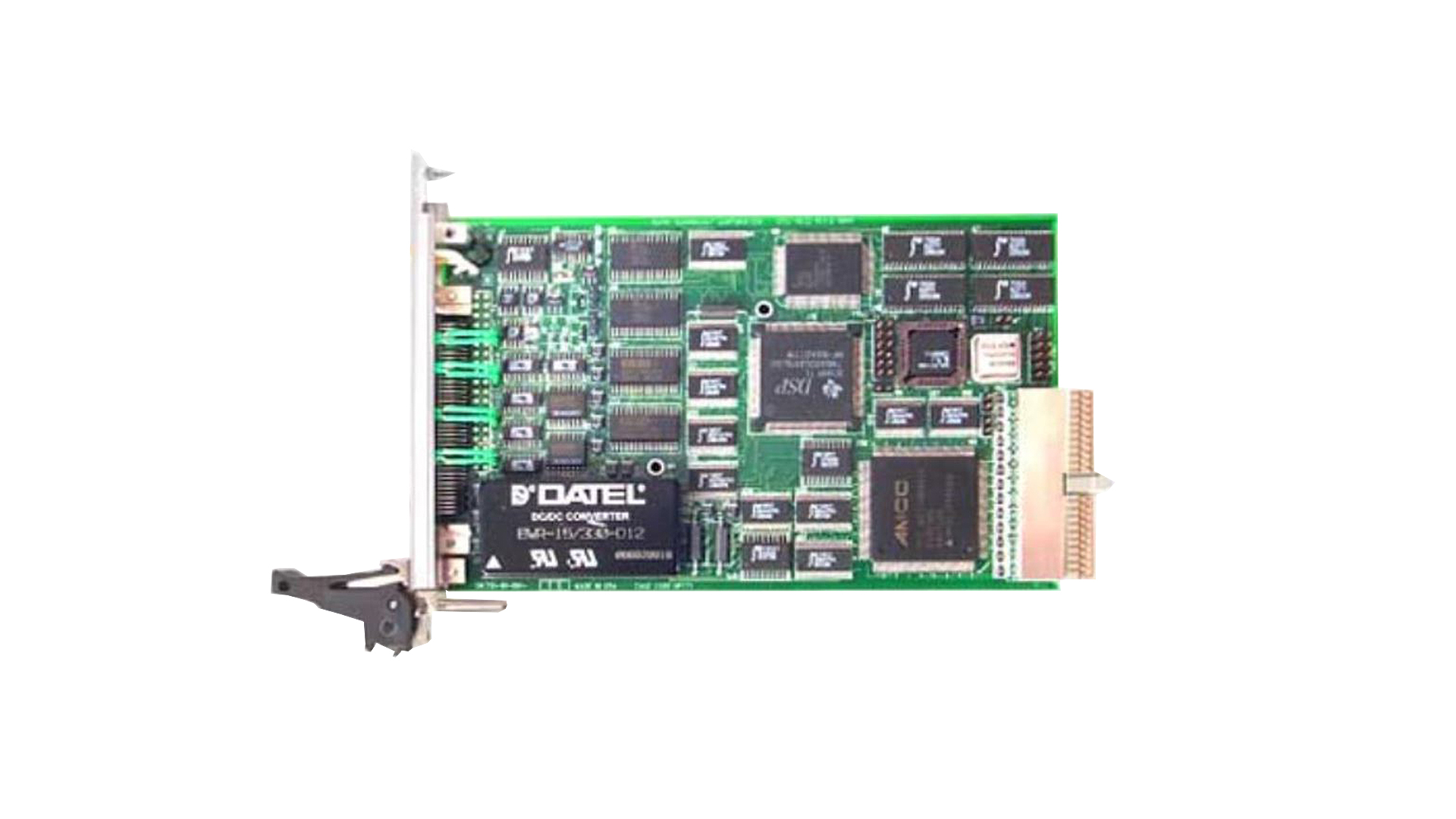

CPCI-AD32

CPCI 320C31 DSP, 32 Channel 16-Bit A/D, 2 Channel 16-Bit D/A

Digital Signal Processor TMS320C31 at 60 MHz.
3U high Compact PCI module
Dual 16-bit A/D converters and four 8 to 1 multiplexers support 32 analog input channels
Dual 16-bit D/A converters
Front panel I/O
16 digital I/O with counter/timers
Differential or single-ended analog inputs
Built-in DMA support for PCI and system high-speed data transfers
Instrumentation amplifier input support with software programmable gain

Share this product

Got Questions?

CPCI-AD32

CPCI 320C31 DSP, 32 Channel 16-Bit A/D, 2 Channel 16-Bit D/A

Product Details

Digital Signal Processor TMS320C31 at 60 MHz.
3U high Compact PCI module
Dual 16-bit A/D converters and four 8 to 1 multiplexers support 32 analog input channels
Dual 16-bit D/A converters
Front panel I/O
16 digital I/O with counter/timers
Differential or single-ended analog inputs
Built-in DMA support for PCI and system high-speed data transfers
Instrumentation amplifier input support with software programmable gain

The floating-point 60 MHz, 32-bit DSP TMS320C31 provides input/output signal conditioning support. The DSP is supported by 512 Kbytes of zero wait state SRAM that provides temporary storage and workspace for DSP operations and a 4 Mbit flash memory. Up to 32 input analog channels are optionally filtered after software gain amplification; instrumentation amplifiers provide differential or single-ended input buffering. A/D operations can be triggered internally or externally through the front panel. A PCI bus connector provides the interface to the host computer. This module can use an external power source for reduced noise operation.

Available Software Drivers and Software Tools:

- - C library DLLs
  - Linux drivers
  - Windows XP drivers
  - VxWorks drivers
  - LabView

Applications:

16 digital TTL I/O. The Local DSP can be used to simply move data to and from the CPCI bus or provide control for factory automation, automatic test equipment, and control systems where control feedback is necessary (PID control, etc.). Custom application software can be downloaded to the DSP via the CompactPCI bus.

TMS320C31 DSP Features:

- - 32-bit floating point TMS320C31 DSP at 60 MHz
  - Single-cycle instruction execution
  - 2 Kbytes of internal RAM
  - DMA internal co-processor for concurrent I/O and CPU operation
  - Boot loader program built-in
  - 64 x 32 internal cache for data
  - 2 built-in timers
  - Two integer and floating point multipliers
  - Parallel multiply and arithmetic/logical operations on integer or floating-point numbers in a single cycle
  - Internal or external trigger support for A/D conversion synchronization tied to DSP operations
  - Two 32-bit timers which can also be configured for bit I/O

AD976A Specifications:

- - Fast 16-bit ADC
  - Successive approximation, switched capacitor architecture
  - 200 Ksamples/sec throughput – AD976A
  - Single 5 V supply operation
  - Input range: ±10 VDC
  - 100 mW max power dissipation
  - Choice of external or internal 2.5 VDC reference
  - High-speed parallel interface
  - On-chip clock

PGA204 Instrumentation Amplifier Specifications:

- - Differential or single-ended input support; single-ended output referenced to Vref
  - ±10 VDC input range
  - Software programmable gain of 1, 10, 100, or 1000
  - Over-voltage protection to ±40 VDC
  - Low offset voltage: 50 µV max
  - Low offset voltage drift: 0.25 µV/°C
  - Low input bias current: 2nA max
  - Low quiescent current: 52 mA typical
  - Offset voltage, voltage drift, and quiescent current are laser-trimmed

Instrumentation Amplifier Specifications:

- - Differential or single-ended input support
  - ±10 VDC input range
  - Software programmable gain of 1, 2, 4, or 8; optional 1, 10, 100, or 1000
  - Over-voltage protection to ±40 VDC

Digital I/O:

- - 16 bi-directional TTL I/O with counter/timer

D/A Specifications:

- - 2 channels of 16-bit D/A

PCI Bus Controller Features:

- - Uses the AMCC S5935 PCI controller
  - PCI 2.1 compliant master/slave
  - 132 Mbytes/sec transfer rate
  - Supports Windows NT service pack 2 & 3
  - PCI bus operation DC to 33 MHz
  - Four definable pass-through data channels
  - Two 32-byte internal FIFOs with DMA
  - Four mailbox registers with byte-level status and data strobe/interrupts
  - Direct PCI and add-on interrupt pins
  - Serial nvRAM interface or byte-wide nonvolatile memory interface

Operating Environment:

- - Operating temperature:
    - Commercial: 0 to +70 ºC
    - Optional: -25 ºC to +80 ºC
  - Non-operating: -40 ºC to +85 ºC
  - Airflow requirement – 5 CFM
  - Humidity – 5 to 90% (non-condensing)
  - Altitude – 0 to 10,000 feet

Mechanical Environment:

- Size – 3U CPCI module (100mm x 160mm)
- Power – 1.5 watt
- Vibration – 0.5G, 20-2000 Hz random
- Shock – 20G, 11 msec, ½ sine
- Weight – TBD
- MTBF – >250,000 hours

CPCI-AD32:
Multifunction A/D, D/A & TTL with TMS320C31 DSP

CPCI-ASD32-2:
with optional input gain of 1, 10, 100, or 1000

Optional Accessories:

CBL-SCSI-80:
80 pin SCSI cable only

TB-80:
80-pin terminal block with cable

Data Sheet – Link Here

User Manual – Link Here

Digital Signal Processor TMS320C31 at 60 MHz.
3U high Compact PCI module
Dual 16-bit A/D converters and four 8 to 1 multiplexers support 32 analog input channels
Dual 16-bit D/A converters
Front panel I/O
16 digital I/O with counter/timers
Differential or single-ended analog inputs
Built-in DMA support for PCI and system high-speed data transfers
Instrumentation amplifier input support with software programmable gain

Mechanical Interface

Switched Mezzanine Card (XMC) Interface confirming to ANSI/VITA 42.0-2008 (Auxiliary Standard)

Standard single-width (149mm x 74mm)

Electrical Interface

PCI Express x4 Link (Base Specification 2.1) compliant interface conforming to ANSI/VITA 42.3-2006 (PCI Express Protocol Layer Standard)

PCI Express Switch

PI7C9X2G312GP (Pericom)

PCI Express to PCI Bridge

XIO2001 (Texas Instruments)

User configurable FPGA

TXMC639-10R: XC7K160T-2FBG676I (AMD)

TXMC639-11R: XC7K325T-2FBG676I (AMD)

SPI-Flash

MT25QL128 (Micron) 128 Mbit (contains TXMC639 FPGA BRD) or compatible; +3.3 V supply voltage

DDR3 RAM

2x MT41K256M16TW-107 (Micron) 256Meg x 32 bit

Board Configuration Controller

LCMXO2-7000HC (Lattice)

ADC

LTC2320 -16 (Analog Devices)

DAC

AD5547BRUZ (Analog Devices)

A/D Channels

TXMC639-10R: 8 Differential 16bit A/D Channels

TXMC639-11R: 16 Differential 16bit A/D Channels

Input Configuration per BCC Device:

Input Voltage Ranges:

Differental : ±20.57 V, ±10.28 V or ±5.14 V

(Single-Ended: ±10.28 V, ±5.14 V or ±2.57 V)

All analog inputs are connected via an impedance converter and a second operation amplifier for level adjustment and filtering to the differential ADC inputs.

The -3 dB limit of this input stage is at approx. 8MHz

D/A Channels

TXMC639-10R: 4 Single-Ended 16 Bit D/A Channels

TXMC639-11R: 8 Single-Ended 16 Bit D/A Channels

Output range configurable per D/A channel.
Simultaneous Conversion for all D/A Channels.

Maximum single-ended Output Voltage – Vout: ±10 V

Maximum Output Drive Current for each Output: 10 mA

Maximum Capacitive Load for each Output: 1000 pF

Typical Settling Time for a 10 mA / 1000 pF: < 1 µs

Digital Front I/O Channels

32 digital I/O Lines

Default configured as 32 ESD-protected TTL lines
16 I/O lines are configurable as 8 differential RS422 I/O lines with individual Termination enable.

Digital Rear I/O Channels

64 direct FPGA I/O lines to P14 Rear I/O connector

Can be used as single-ended or differential I/O
FPGA I/O Standard: LVCMOS25, LVTTL25 and LVDS25

4 MGT line to P16 Rear I/O connector

Each line consists of one differential RX and TX pair.
Transmission speeds of up to 3.125 Gb/s are possible.

Front I/O

Front I/O Samtec – ERF8_050_01_L_D_RA_L_TR

P14 Rear I/O

64 pin Mezzanine Connector (Molex 71436-2864 or compatible)

P16 Rear I/O

114 pin Mezzanine Connector (Samtec – ASP-105885-01)

Power Requirements ¹⁾

Depends on FPGA design

With TXMC639 Board Reference Design / without external load

	typical @ +12 V VPWR	typical @ +5 V VPWR
TXMC639-10R	1.1 A	2.5 A
TXMC639-11R	1.3 A	3.3 A

Temperature Range

Operating: – 40 °C to + 85 °C
Storage: – 55 °C to + 125 °C

MTBF ¹⁾

157 000 h to 161 000 h

Humidity

5% – 95% non-condensing

Weight

140 g

¹⁾ depends on variant, for further details see User Manual

TXMC639-10R

8x Analog In, 4x Analog Out, XC7K160T-2FBG676 Kintex™ 7 FPGA

AMD Kintex™ 7 FPGA (XC7K160T-2FBG676), 1GB DDR3, 8x Analog In, 4x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O

TXMC639-11R

16x Analog In, 8x Analog Out, XC7K325T-2FBG676 Kintex™ 7 FPGA

AMD Kintex™ 7 FPGA (XC7K325T-2FBG676), 1GB DDR3, 16x Analog In, 8x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O
