CPCI-6713-ISC8
CPCI 320C6713 DSP OCTAL SERIAL CONTROLLER
- 8 Serial channels
- Zilog 85230 controllers
- Mezzanine I/O module for RS-232/422/485 or user I/O
- 3.3 / 5 Volt via PLX 9056 33/66MHz
- TMS320C6713B, 300MHz
- Up to 32Mbytes of SDRAM
- 4.0 Mbit flash memory for bootstrap program
Share this product
LinkedIn
CPCI-6713-ISC8
CPCI 320C6713 DSP OCTAL SERIAL CONTROLLER

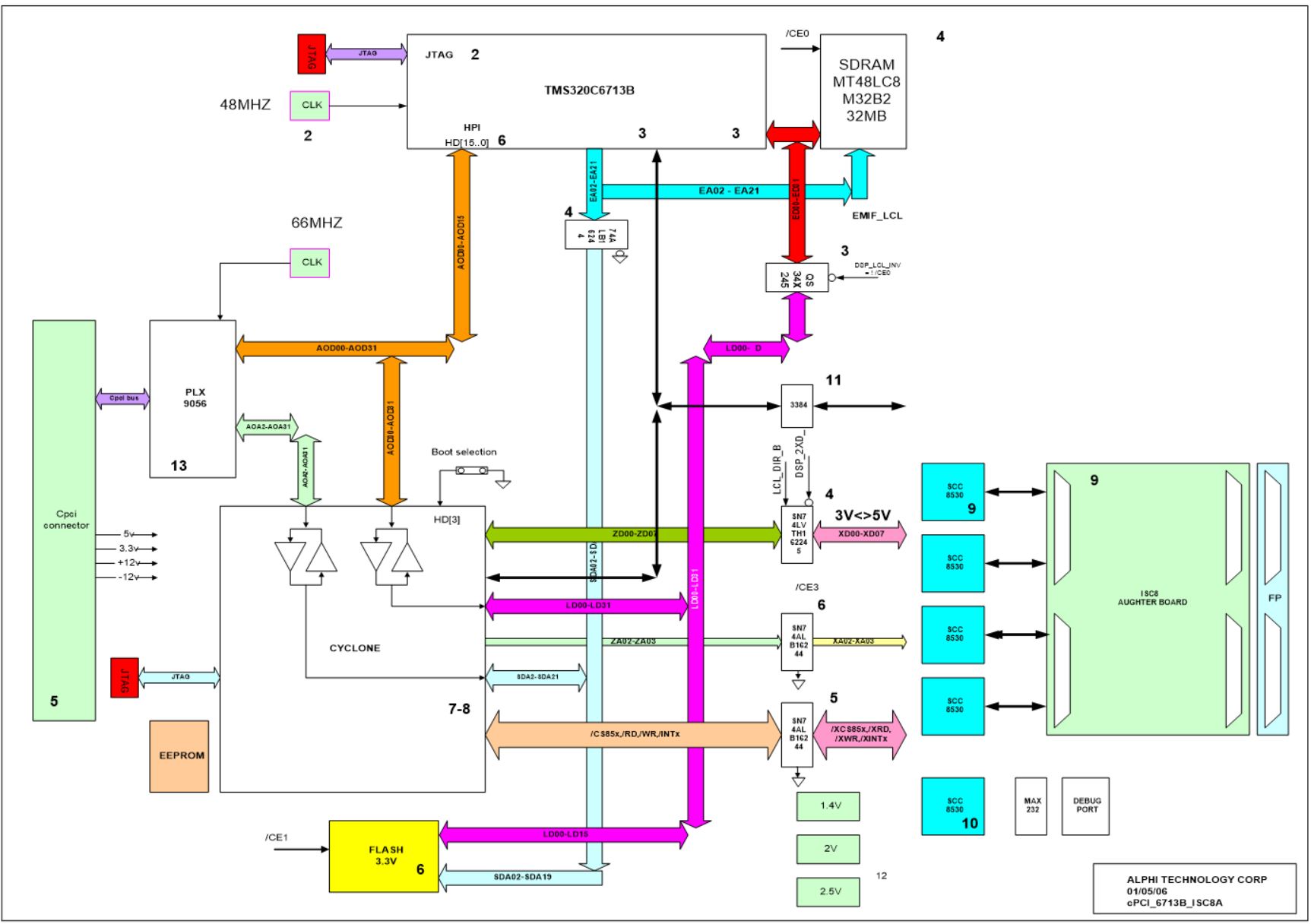

The new CPCI-6713-ISC8 module provides a 3U high-performance multi-protocol serial controller, supporting RS-232, RS-422/485, TTL, and user I/O configurations. It supports various communication modes, including Synchronous, Asynchronous, Bi-sync, Xon/Xoff, SDLC, and HDLC. The local DSP can be used to move data to and from the CPCI bus or provide pre-processing and custom protocol functions. Custom application software can be downloaded to the DSP via the CompactPCI bus.
The TMS320C67x DSP generation is supported by the TI eXpressDSPTM set of industry development tools, including a highly optimizing C/C++ Compiler, the Code Composer StudioTM Integrated Development Environment (IDE), JTAG-based emulation, real-time debugging, and the DSP/BIOS kernel.
DSP Specifications:
-
-
- TMS320C6713B™ DSP @ 300 Mhz
- 64K-Byte L2 Unified Cache/Mapped RAM
- 192K-Byte Additional L2 Mapped RAM
- Dual 32 bit general purpose timers
- 16 channel EDMA ‘Enhanced DMA’
- 16-bit Host-Port Interface (HPI)
-
CPCI Bus:
-
-
- CPCI Bus Interface 3.3 / 5 Volt
- PLX 9056 33/66MHz 32-bit, PCI r2.2 compliant 3.3V I/O, 5V tolerant bus interfaces
-
Debug Port:
-
-
- JTAG emulator port
- On board RS-232 header
-
I/O Panel Connectors:
-
-
- Front Panel (2) X 50 pin HRS for I/O
-
Mechanical & Environmental:
-
- Operating temp: 0 to +55 °C
- Airflow requirement: 10 CFM
- Humidity: 5 to 90% (non-cond.)
- Altitude: 0 to 10,000 ft
- Full size PCI card
- Front panel I/O
- Power: +5V 1 amp, +12V 1 amp
- Vibration: 0.5G RMS 20-2KHz random
- Shock: 20 G, 11 ms, ½ sine
- Weight: 2 lbs
- MTBF: >17200 hours
CPCI-6713-ISC8:
3U CPCI 8 channel serial controller with 320C6713 DSP
CBL-50-HRS:
Cable
TB-50-HRS:
Terminal Block
- 8 Serial channels
- Zilog 85230 controllers
- Mezzanine I/O module for RS-232/422/485 or user I/O
- 3.3 / 5 Volt via PLX 9056 33/66MHz
- TMS320C6713B, 300MHz
- Up to 32Mbytes of SDRAM
- 4.0 Mbit flash memory for bootstrap program
| Mechanical Interface | Switched Mezzanine Card (XMC) Interface confirming to ANSI/VITA 42.0-2008 (Auxiliary Standard) Standard single-width (149mm x 74mm) | |||||||||
| Electrical Interface | PCI Express x4 Link (Base Specification 2.1) compliant interface conforming to ANSI/VITA 42.3-2006 (PCI Express Protocol Layer Standard) | |||||||||
| PCI Express Switch | PI7C9X2G312GP (Pericom) | |||||||||
| PCI Express to PCI Bridge | XIO2001 (Texas Instruments) | |||||||||
| User configurable FPGA | TXMC639-10R: XC7K160T-2FBG676I (AMD) TXMC639-11R: XC7K325T-2FBG676I (AMD) | |||||||||
| SPI-Flash | MT25QL128 (Micron) 128 Mbit (contains TXMC639 FPGA BRD) or compatible; +3.3 V supply voltage | |||||||||
| DDR3 RAM | 2x MT41K256M16TW-107 (Micron) 256Meg x 32 bit | |||||||||
| Board Configuration Controller | LCMXO2-7000HC (Lattice) | |||||||||
| ADC | LTC2320 -16 (Analog Devices) | |||||||||
| DAC | AD5547BRUZ (Analog Devices) | |||||||||
| A/D Channels | TXMC639-10R: 8 Differential 16bit A/D Channels TXMC639-11R: 16 Differential 16bit A/D Channels Input Configuration per BCC Device: Input Voltage Ranges: Differental : ±20.57 V, ±10.28 V or ±5.14 V (Single-Ended: ±10.28 V, ±5.14 V or ±2.57 V) All analog inputs are connected via an impedance converter and a second operation amplifier for level adjustment and filtering to the differential ADC inputs. The -3 dB limit of this input stage is at approx. 8MHz | |||||||||
| D/A Channels | TXMC639-10R: 4 Single-Ended 16 Bit D/A Channels TXMC639-11R: 8 Single-Ended 16 Bit D/A Channels Output range configurable per D/A channel. Maximum single-ended Output Voltage – Vout: ±10 V Maximum Output Drive Current for each Output: 10 mA Maximum Capacitive Load for each Output: 1000 pF Typical Settling Time for a 10 mA / 1000 pF: < 1 µs | |||||||||
| Digital Front I/O Channels | 32 digital I/O Lines
| |||||||||
| Digital Rear I/O Channels | 64 direct FPGA I/O lines to P14 Rear I/O connector
4 MGT line to P16 Rear I/O connector
| |||||||||
| Front I/O | Front I/O Samtec – ERF8_050_01_L_D_RA_L_TR | |||||||||
| P14 Rear I/O | 64 pin Mezzanine Connector (Molex 71436-2864 or compatible) | |||||||||
| P16 Rear I/O | 114 pin Mezzanine Connector (Samtec – ASP-105885-01) | |||||||||
| Power Requirements 1) | Depends on FPGA design With TXMC639 Board Reference Design / without external load
| |||||||||
| Temperature Range | Operating: – 40 °C to + 85 °C Storage: – 55 °C to + 125 °C | |||||||||
| MTBF 1) | 157 000 h to 161 000 h | |||||||||
| Humidity | 5% – 95% non-condensing | |||||||||
| Weight | 140 g |
1) depends on variant, for further details see User Manual
TXMC639-10R
| 8x Analog In, 4x Analog Out, XC7K160T-2FBG676 Kintex™ 7 FPGA AMD Kintex™ 7 FPGA (XC7K160T-2FBG676), 1GB DDR3, 8x Analog In, 4x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O |
TXMC639-11R
| 16x Analog In, 8x Analog Out, XC7K325T-2FBG676 Kintex™ 7 FPGA AMD Kintex™ 7 FPGA (XC7K325T-2FBG676), 1GB DDR3, 16x Analog In, 8x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O |
