- 1 or 2 controllers of dual redundant (A/B channel) 1553 communications
- Programmable bus controller, remote terminal, or monitor terminal modes
- MIL-STD-1553 A and B compliant, Notice 2 RT
- STANAG 3838, McAir A3818, and General Dynamics 16PP303 compatible
- BC/RT/MT mode
- 64K words internal RAM with parity
- Long or short stub support
- Front panel I/O
- 1 or 2 controllers of dual redundant (A/B channel) 1553 communications
- Programmable bus controller, remote terminal, or monitor terminal modes
- MIL-STD-1553 A and B compliant, Notice 2 RT
- Long or short stub support
- Low power consumption
- Front I/O panel
- On-chip transceivers
- PICMG compliant
- Single +5 VDC supply
- Simultaneous RT/M mode
- Remote terminal address input
- Options:
- 0 to +70 degrees,
- -25 to +80 degrees
- Conformal coating
- RT address jumper selection
- 3U, 6U or stand alone
- 50 Pin IDC 0.1” header connector
- Dual Redundant
- Channel (A), Channel (B)
- Engineering Kits

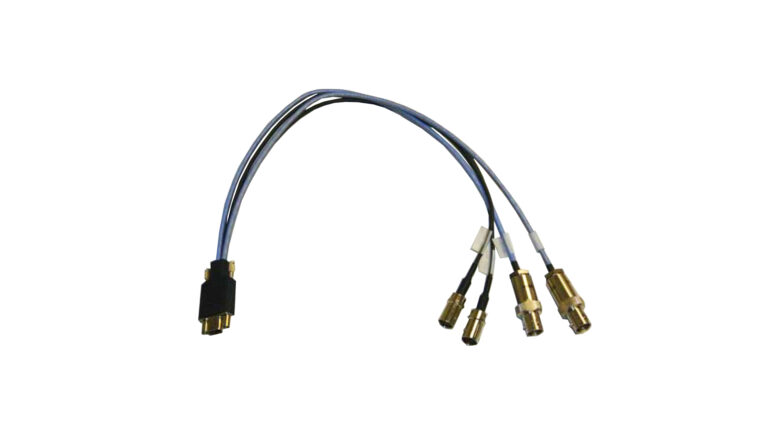

- Micro DSub to Triax
- External CLK Input
- External CLK Output
- 78 ohm Terminators
- T connectors
- VITA compliant
- 1 controller of dual redundant (A/B channel) 1553 communications
- Programmable bus controller, remote terminal, or monitor terminal modes
- MIL-STD-1553 A and B compliant, Notice 2 RT
- Long or short stub support
- Low power consumption
- On-chip transceivers
- On-board isolation transformers
- Single +5 VDC supply
- EEPROM (32 bytes) for identification
- Simultaneous RT/M mode
- M.2 PCI Express x1 lane interface
- M.2 3042 Key B & M
- Two dual redundant MIL-STD-1553 Total-AceXtreme® controllers (A/B channel)
- Multiprotocol support: MIL-STD-1553A/B STANAG-3838 and MIL-STD-1760
- 2MB RAM per Channel
- Programmable mode: Bus Controller, Remote Terminal with concurrent bus monitor
- IRIG-106 Chapter 10 monitor
- Emulate up to 31 RT addresses simultaneously
- Filter based on RT address, T/R bit, sub-address
- Transformer coupled
