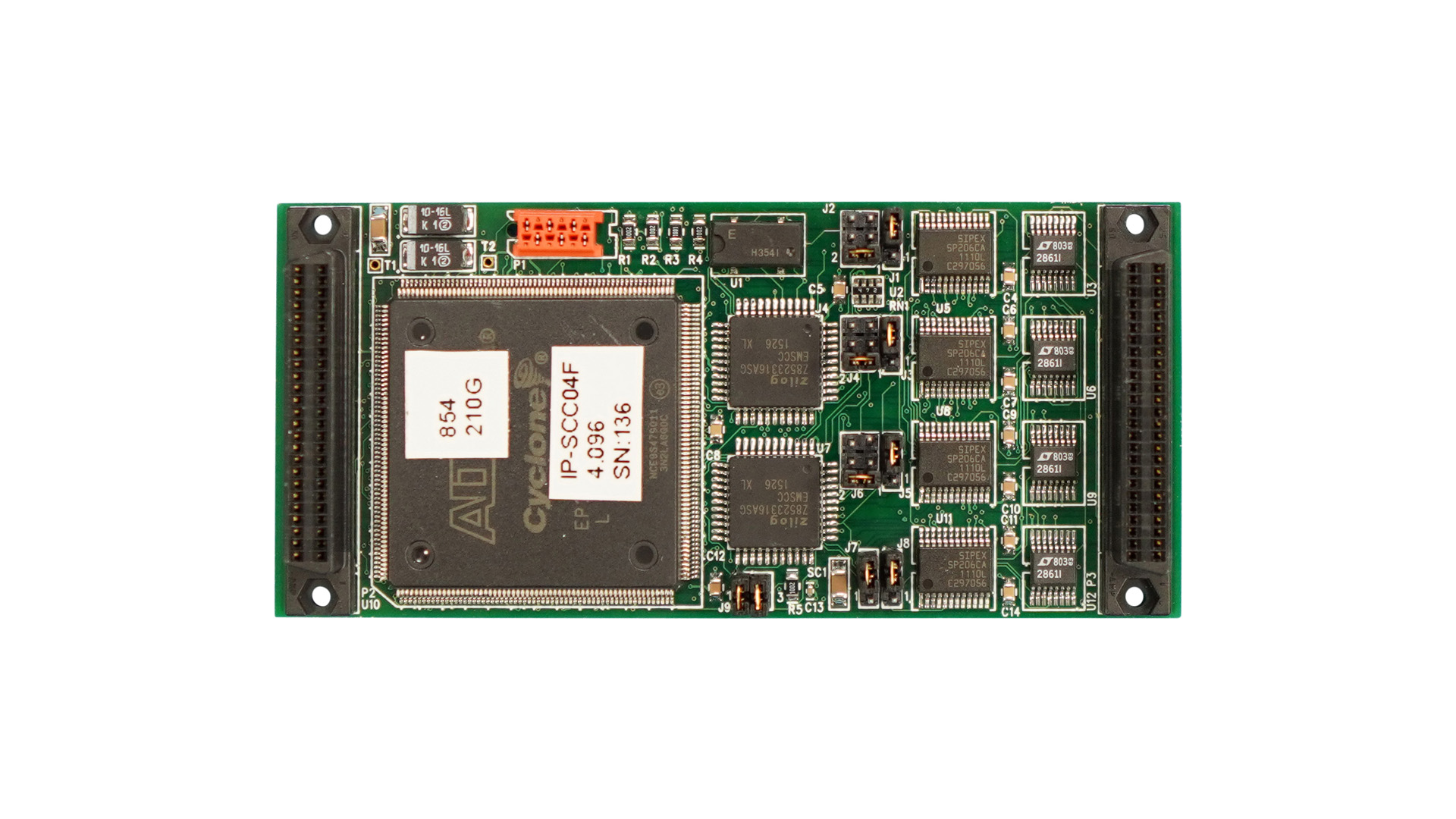

IP-SCC04F
Quad Serial I/O Industry Pack With 4K FIFO RS-232 and RS-422/485 Software Selectable
- Serial Ports: Quad synchronous/asynchronous serial ports
- FIFO: 4K FIFO per line (TX and RX)
- Interface Options: Software-selectable RS-232 or RS-422/485, with support for HDLC and SDLC protocols
- Baud Rate Generators: Individual baud rate generators per port
- Data Rates:
- Asynchronous: Up to 230 kbps
- Synchronous: Up to 2 Mbps
- Control Lines: Full handshake control lines
- Termination: Software-programmable 100 Ohm termination
- Modem Control: Full modem control
- Power Consumption: Low power, typically 375 mA
- Software Support: Software examples included, VxWorks available
Share this product
LinkedIn
IP-SCC04F
Quad Serial I/O Industry Pack With 4K FIFO RS-232 and RS-422/485 Software Selectable
The ATC-SCC04F module is a quad channel serial communication controller with 4K Fifo per Line. The ATC-SCC04F module is based on 4 enhanced Z85233, with larger FIFOs and several SDLC improvements from Zilog. This module provides four asynchronous ports up to 230 kbaud and synchronous ports up to 2 Mbaud full-duplex channels, with an independent baud rate generator for each channel. Several types of interface are supported by the ATC-SCC04F module: – RS-232 for the ATC-SCC04FA version and RS-422 / RS-485 for the ATC-SCC04FB version – TTL for the ATC-SCC-04FTTL version.
Features
- Four Z85233 Enhanced Controller
- Quad synchronous / Asynchronous serial ports
- 4K FIFO per Line ( TX and RX )
- Software selectable RS-232 or RS-422, RS-485 HDLC, SDLC
- Individual baud rate generators per port
- 230 Kbits Async. Upto 2 Mbits Sync.
- Full handshake control line
- Software Programbale 100 Ohm Termination
- Full modem control
- Low power 375mA typ.
- Software examples included
- VxWorks available
Applications
- Communication
- IP interface
- Compatible with Industry Pack Bus specification
- Identification EEPROM
- 8/32 MHz clock
- 16 bit data
Operating: Environmental
- Operating temperature
- Commercial: 0 to +70 °C
- Optional: -25°C to +80°C
- Non-operating: -40°C to 85 °C
- Airflow requirement: .5 CFM
- Humidity: 5 to 90% (non-condensing)
- Altitude: 0 to 10’000 ft
Mechanical: Environmental
- Size: Vita 4 Type 1 IP 1.8″ x 3.9″
- Power: +5, +12, -12 volts
- Vibration: 0.5G RMS 20-2000 Hz rand
- Shock: 20 G, 11 ms, 1⁄2 sine
- Weight: tbd
- MTBF: >250000 hours
Part Number: ATC-SCC04F-XX
-
- 4 Channel RS-422/RS-485 Module
- XX: Clock desired for baud rate
Optional Accessories:
- Part Number: TB-50-HDR
- 50 pin terminal block and 1-meter flat ribbon cable
- Part Number: CBL-50-HDR
- 50 pin, 1-meter flat ribbon cable, IDC header connector
- Serial Ports: Quad synchronous/asynchronous serial ports
- FIFO: 4K FIFO per line (TX and RX)
- Interface Options: Software-selectable RS-232 or RS-422/485, with support for HDLC and SDLC protocols
- Baud Rate Generators: Individual baud rate generators per port
- Data Rates:
- Asynchronous: Up to 230 kbps
- Synchronous: Up to 2 Mbps
- Control Lines: Full handshake control lines
- Termination: Software-programmable 100 Ohm termination
- Modem Control: Full modem control
- Power Consumption: Low power, typically 375 mA
- Software Support: Software examples included, VxWorks available
