IP-THERMISTOR

6 TEMPERATURE CHANNELS – 8 HIGH VOLTAGE CHANNELS

  • Temperature Measurement Channels: 6 channels
  • Precision: Programmable between 16-bit and 24-bit
  • Analog-to-Digital (A/D) Channels: 8 channels, each 16-bit
  • Input Voltage Range: Up to ±20V
  • Programmable Input Ranges: ±10V, ±5V, 0-5V, 0-10V per channel
  • Software-Programmable Gain: 1 to 128
  • Sampling Clock: 100 KSPS (kilo-samples per second)
  • Programming Interface: IP Bus

IP Interface:

  • Clock Speed: 8/32 MHz
  • Data Width: 16-bit
  • Interrupts: Supported

Share this product

LinkedIn

Got Questions?

IP-THERMISTOR

6 TEMPERATURE CHANNELS – 8 HIGH VOLTAGE CHANNELS

  • Temperature Measurement Channels: 6 channels
  • Precision: Programmable between 16-bit and 24-bit
  • Analog-to-Digital (A/D) Channels: 8 channels, each 16-bit
  • Input Voltage Range: Up to ±20V
  • Programmable Input Ranges: ±10V, ±5V, 0-5V, 0-10V per channel
  • Software-Programmable Gain: 1 to 128
  • Sampling Clock: 100 KSPS (kilo-samples per second)
  • Programming Interface: IP Bus

IP Interface:

  • Clock Speed: 8/32 MHz
  • Data Width: 16-bit
  • Interrupts: Supported

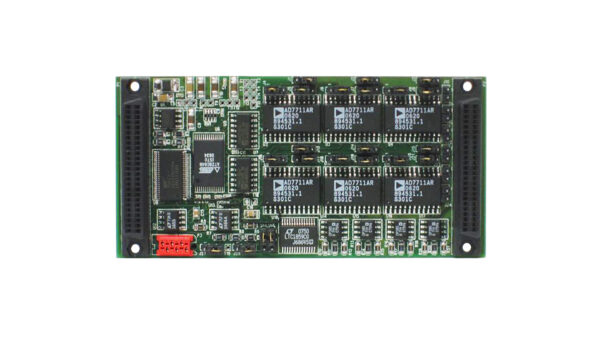

The IP-THERMISTOR is designed around the delta sigma A/D converter AD7711 from Analog Devices. It is a 24/16 bit precision temperature measurement single width IP module, with fixed and optional programmable current source. Each of the 6 temperature measurement channel has its own A/D converter with two matched 200μA current sources. The Board also features 8 single-ended high impedance analog inputs. Also a 16 bit A/D converter with 8 channels multiplexed allows measurement of input voltage in excess of +/- 20volts.

Features
  • 6 Temperature Measurement Channels
  • 16 or 24 Bits precision programmable
  • Eight x 16 Bits A/D channels
  • Input Voltage up to +/- 20V
  • Each Analog input is programmable separately ±10V, ±5V, 0-5V, 0-10 V
  • Input with software programmable Gain from 1-128
  • Sampling clock of 100KSPS
Programmable via:
  • IP Bus
IP interface:
  • 8/32 MHz clock
  • 16 bit data
  • Interrupts
Operating: Environmental:
  • Operating temperature
    • Commercial: 0 to +55 °C
    • Optional: -25°C to +80°C
  • Non-operating: -40°C to 85 °C
  • Airflow requirement: .5 CFM
  • Humidity: 5 to 90% (non-cond.)
  • Altitude: 0 to 10’000 ft
Mechanical: Environmental:
  • Size: Vita 4 Type 1 IP 1.8″ x 3.9″
  • Power: up to 3.5 watt
  • Vibration: 0.5G RMS 20-2000 Hz rand
  • Shock: 20 G, 11 ms, 1⁄2 sine
  • Weight: tbd
  • MTBF: >250000 hours

Ordering Information:

  • Part Number: IP-THERMISTOR
    • 6 Temperature Channels – 8 Voltage Inputs

Optional Accessories:

  • Part Number: TB-50-HDR
    • 50 pin terminal block and 1-meter flat ribbon cable
  • Part Number: CBL-50-HDR
    • 50 pin, 1-meter flat ribbon cable, IDC header connector

Data Sheet – Link Here

User Manual – Link Here

  • Temperature Measurement Channels: 6 channels
  • Precision: Programmable between 16-bit and 24-bit
  • Analog-to-Digital (A/D) Channels: 8 channels, each 16-bit
  • Input Voltage Range: Up to ±20V
  • Programmable Input Ranges: ±10V, ±5V, 0-5V, 0-10V per channel
  • Software-Programmable Gain: 1 to 128
  • Sampling Clock: 100 KSPS (kilo-samples per second)
  • Programming Interface: IP Bus
IP Interface:
  • Clock Speed: 8/32 MHz
  • Data Width: 16-bit
  • Interrupts: Supported



Mechanical Interface

Switched Mezzanine Card (XMC) Interface confirming to ANSI/VITA 42.0-2008 (Auxiliary Standard)

Standard single-width (149mm x 74mm)

Electrical InterfacePCI Express x4 Link (Base Specification 2.1) compliant interface conforming to ANSI/VITA 42.3-2006 (PCI Express Protocol Layer Standard)
PCI Express SwitchPI7C9X2G312GP (Pericom)
PCI Express to PCI BridgeXIO2001 (Texas Instruments)
User configurable FPGA

TXMC639-10R: XC7K160T-2FBG676I (AMD)

TXMC639-11R: XC7K325T-2FBG676I (AMD)

SPI-FlashMT25QL128 (Micron) 128 Mbit (contains TXMC639 FPGA BRD) or compatible; +3.3 V supply voltage
DDR3 RAM2x MT41K256M16TW-107 (Micron) 256Meg x 32 bit
Board Configuration ControllerLCMXO2-7000HC (Lattice)
ADCLTC2320 -16 (Analog Devices)
DACAD5547BRUZ (Analog Devices)
A/D Channels

TXMC639-10R: 8 Differential 16bit A/D Channels

TXMC639-11R: 16 Differential 16bit A/D Channels

Input Configuration per BCC Device:

Input Voltage Ranges:

Differental : ±20.57 V, ±10.28 V or ±5.14 V

(Single-Ended: ±10.28 V, ±5.14 V or ±2.57 V)

All analog inputs are connected via an impedance converter and a second operation amplifier for level adjustment and filtering to the differential ADC inputs.

The -3 dB limit of this input stage is at approx. 8MHz

D/A Channels

TXMC639-10R: 4 Single-Ended 16 Bit D/A Channels

TXMC639-11R: 8 Single-Ended 16 Bit D/A Channels

Output range configurable per D/A channel.
Simultaneous Conversion for all D/A Channels.

Maximum single-ended Output Voltage – Vout: ±10 V

Maximum Output Drive Current for each Output: 10 mA

Maximum Capacitive Load for each Output: 1000 pF

Typical Settling Time for a 10 mA / 1000 pF: < 1 µs

Digital Front I/O Channels

32 digital I/O Lines

  • Default configured as 32 ESD-protected TTL lines
  • 16 I/O lines are configurable as 8 differential RS422 I/O lines with individual Termination enable.
Digital Rear I/O Channels

64 direct FPGA I/O lines to P14 Rear I/O connector

  • Can be used as single-ended or differential I/O
  • FPGA I/O Standard: LVCMOS25, LVTTL25 and LVDS25

4 MGT line to P16 Rear I/O connector

  • Each line consists of one differential RX and TX pair.
  • Transmission speeds of up to 3.125 Gb/s are possible.
Front I/OFront I/O Samtec – ERF8_050_01_L_D_RA_L_TR
P14 Rear I/O64 pin Mezzanine Connector (Molex 71436-2864 or compatible)
P16 Rear I/O114 pin Mezzanine Connector (Samtec – ASP-105885-01)
Power Requirements 1)

Depends on FPGA design

With TXMC639 Board Reference Design / without external load

 typical @ +12 V VPWRtypical @ +5 V VPWR
TXMC639-10R1.1 A2.5 A
TXMC639-11R1.3 A3.3 A
Temperature RangeOperating: – 40 °C to + 85 °C
Storage: – 55 °C to + 125 °C
MTBF 1)157 000 h to 161 000 h
Humidity5% – 95% non-condensing
Weight140 g

1) depends on variant, for further details see User Manual



TXMC639-10R



8x Analog In, 4x Analog Out, XC7K160T-2FBG676 Kintex™ 7 FPGA

AMD Kintex™ 7 FPGA (XC7K160T-2FBG676), 1GB DDR3, 8x Analog In, 4x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O

TXMC639-11R



16x Analog In, 8x Analog Out, XC7K325T-2FBG676 Kintex™ 7 FPGA

AMD Kintex™ 7 FPGA (XC7K325T-2FBG676), 1GB DDR3, 16x Analog In, 8x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O

SOFTWARE

Device Driver for Board Family with Reconfigurable FPGA

Data Sheet – Link-Here

User Manual – Link-Here
