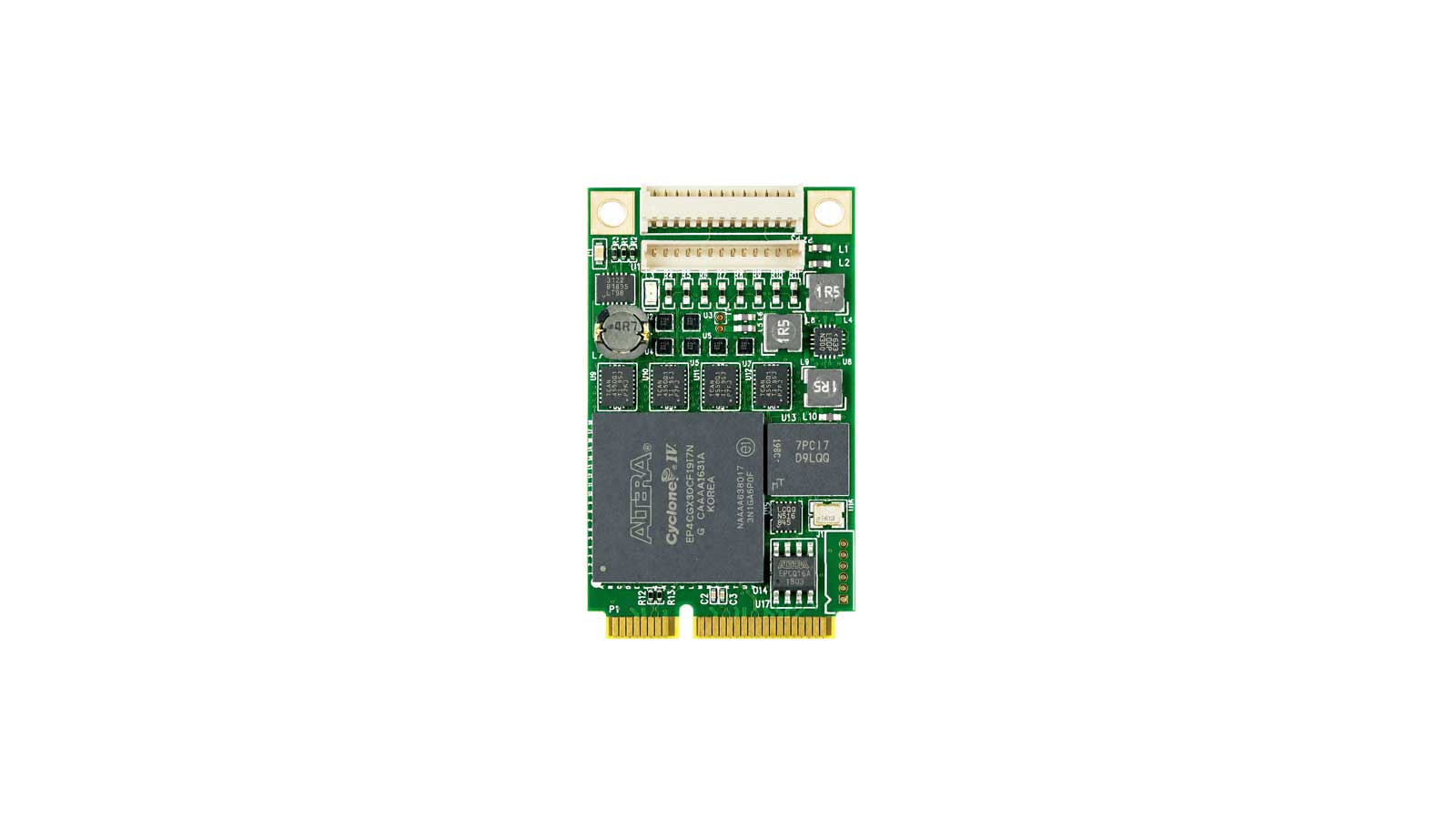

PCie-Mini-CAN-FD
PCIe Mini CAN Controller – PCI Express x1
CAN Bus
- Four channel CAN controller
- Supports classic CAN and CAN FD
- Complies with
- ISO11898-1:2015
- M_CAN Revision 3.2.1.1
- Meets requirements of ISO11898-2:2016
- Data rates from 40Kbps to 8Mbps
- Software programmable speed selection
Share this product
PCie-Mini-CAN-FD
PCIe Mini CAN Controller – PCI Express x1
PCie-Mini-CAN-FD
PCIe Mini CAN Controller – PCI Express x1
Share this product

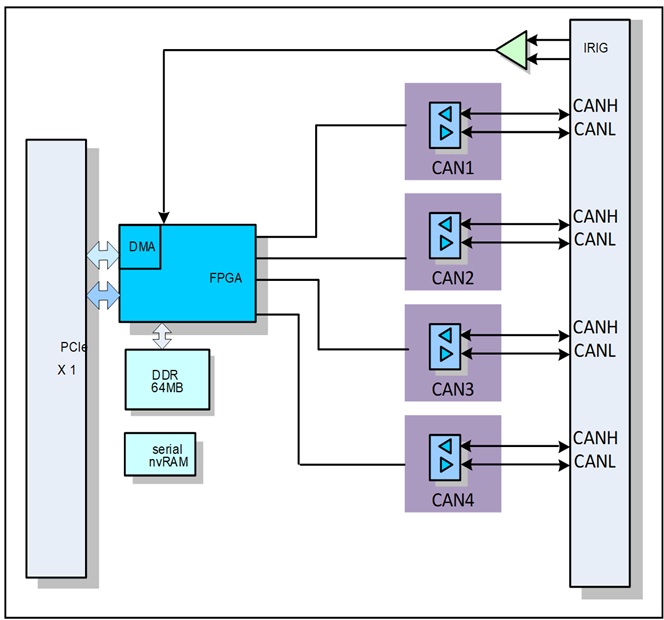

The PCIe-Mini-CAN-FD is PCIexpress controller with an integrated CAN FD transceiver supporting data rates up to 8 Mbps. The CAN FD controller meets the specifications of the ISO11898-1:2015 high speed controller area network (CAN) data link layer and meets the physical layer requirements of the ISO11898–2:2016 high speed CAN specification. The PCIe-Mini-CAN-FD provides an interface between the CAN bus and the system processor that support both classical CAN and CAN FD. The PCIe-Mini-CAN-FD provides CAN FD transceiver functionality – differential transmit-receive capability from the bus. It also supports local wake up (LWU) and bus wake up (WUP). The PCIe-Mini-CAN-FD device includes many protection features providing device and CAN bus robustness. These features include failsafe mode, internal dominant state timeout, wide bus operating range and a timeout watchdog as examples.
CAN Bus
- Independent Software controlled
- 120 Ohm Termination
- Internal External Power Source
- CAN bus robustness
- ±42V bus fault protection
- Failsafe mode
- Internal dominant state timeout
- Timeout watchdog
- IRIG-B input
- ±15KV ESD protection
- PCI Express x1 interface
Applications
This board is optimally suited for communications gateway and protocol coveters. This is a perfect solution for:
- Automotive
- Avionics equipment
- Avionic data communication systems
- Medical systems
- Industrial Transportation and controls
Available Software Drivers
- Linux® SocketCAN drivers
- Windows® drivers
Mechanical
- Size: Mini PCIe Module
30mm x 50.95mm - Power: tbd
- Front panel I/O
- Vibration: 0.5G, 20-2000Hz rand
- Shock: 20G, 11ms, ½ sine
- Weight: tbd
- MTBF: >250,000 hours
Operating Environment
- Operating temperature
Commercial: 0 to +70ºC
Industrial: -40ºC to +85ºC - Non-operating: -60ºC to +120ºC
- Humidity: 5 to 90% (non-cond)
- Altitude: 0 to 10,000 feet
Ordering information
PCIe-Mini–CAN-FD: Four-channels CAN Bus on Mini PCIe
PCIe-Mini–CAN-FD-I: Same as above with -40ºC to +85ºC
Optional Accessories
CBL-Mini-CANFD-12-OPEN: CAN Cable, 12 Inch Micro- Pigtail
CBL-Mini-CANFD-12-DB9: CAN Cable, 12 Inch Micro to DB9
