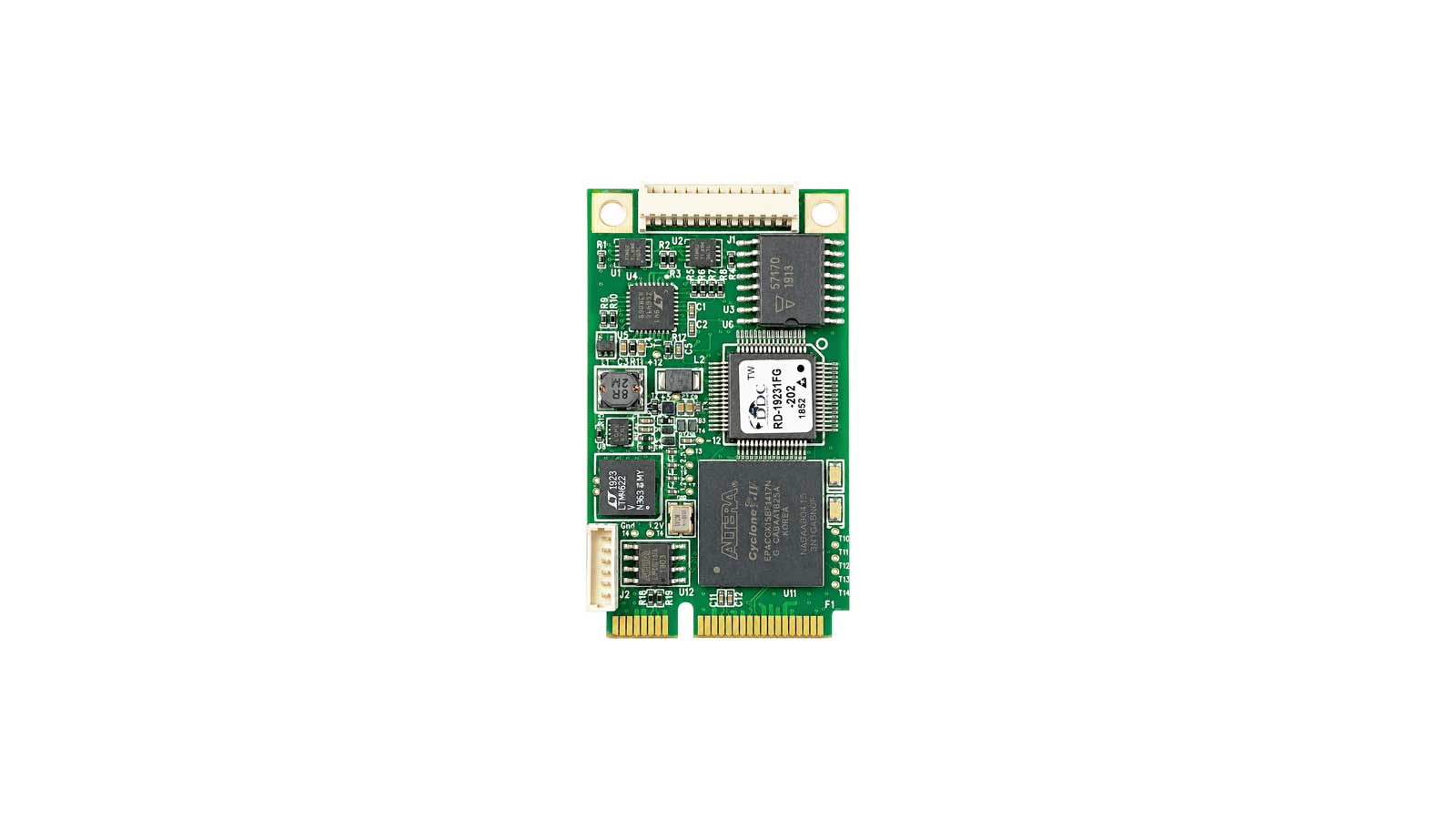

PCIe-Mini-SYNCHRO
16-bit Synchro/Resolver w/Four Channels, 16 bits D/A
- 16-bit Resolver-to-Digital Converter
- Programmable features
- Resolution: 10, 12, 14, or 16 bits
- Accuracy up to 1 Arc Minute
- Bandwidth: DC to 10KHz
- Velocity output scaling and encoder emulation
- Synchro input option 11.8V or 90V
- On board excitation
- Four Channels, 16-bit SoftSpan™ DAC
- Programmable output ranges ±10V
- 10μs settling time
- 30mA output drive
Share this product
PCIe-Mini-SYNCHRO
16-bit Synchro/Resolver w/Four Channels, 16 bits D/A
PCIe-Mini-SYNCHRO
16-bit Synchro/Resolver w/Four Channels, 16 bits D/A
Share this product

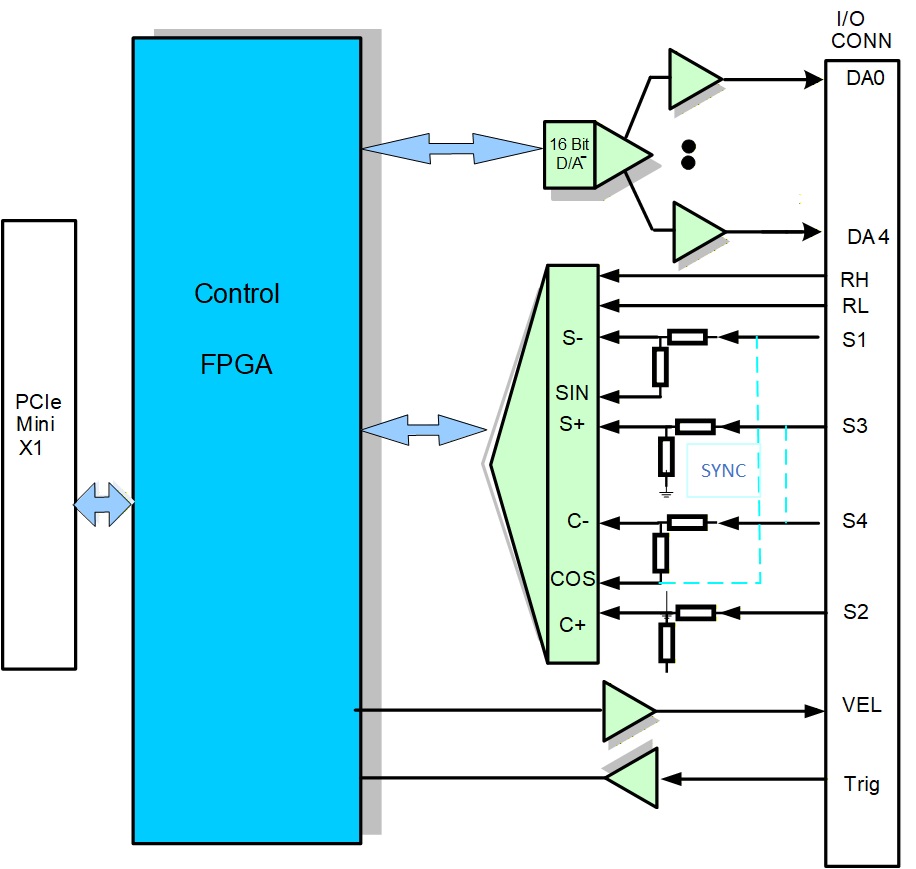

The PCIe-Mini-SYNCHRO module is a one channel Synchro/Resolver controller. It uses a state of the art 16-bit monolithic Resolver-to-Digital converter. This single chip converter offers programmable features such as resolution, bandwidth, velocity output scaling and encoder emulation. Resolution programming allows selection of 10, 12, 14, or 16 bits, with accuracies to 1 Arc Minute. The internal Synthesized Reference feature eliminates errors due to quadrature voltage and ensures operation with a rotor-to-stator phase shift of up to 45 degrees. The velocity output (VEL) can be used in place of a tachometer. This converter provides the option of using a second set of filter components, which can be used in dual bandwidth or switch on the fly applications. This module also has four channels, 16-bit DAC with 10μs settling time and ±10V outputs.
Synchro Resolver capabilities
- Accuracy up to 1 Arc Minute
- Used to Interpolate Synchro, Resolver, Inductosyn, LVDT, RVDT, and Hall sensors
- DC to 10KHz
- Internal synthesized reference
- Programmable resolution, dual bandwidth, and tracking rate
- Internal encoder emulation with independent resolution control
- Velocity output eliminates tachometer
- Built-In-Test (BIT) output, no 180° hang-up with AC Reference
- The RDC channels can have several different input configurations:
- Direct
- Differential
- Resolver
- Synchro
- With 16 Bits Resolution:
- Tracking rate of 18 RPS
- Bandwidth 300Hz
- Acceleration constant Ka of 360K 1/sec²
- Settling time 50ms
Digital to Analog capabilities
- Four Channels DAC
- 16-Bit Resolution
- 10μs settling time
- Buffered Voltage Output
- 30mA drive per Channel
Applications
Applications include antenna positioning, scientific, laboratory, medical and machine control.
Available Software Drivers
- Linux® drivers
- Windows® drivers
- VxWorks® drivers
Mechanical
- Size: Mini PCIe Module
(30mm x 50.95mm) - Power: 240mA
- Front panel I/O
- Vibration: 0.5G, 20-2000Hz rand
- Shock: 20G, 11ms, ½ sine
- Weight: 10g (0.4oz)
- MTBF: >250,000 hours
Operating Environment
- Operating temperature
Commercial: 0 to +70ºC
Industrial: -40ºC to +85ºC - Non-operating: -50ºC to +90ºC
- Airflow requirement: .5CFM
- Humidity: 5 to 90% (non-cond)
- Altitude: 0 to 10,000 feet
Ordering information
PCIe-Mini-SYNCHRO-1S One Channel Synchro 11.8V, Industrial Temp -40ºC to +85ºC
PCIe-Mini-SYNCHRO-1R One Channel Resolver 11.8V, Industrial Temp -40ºC to +85ºC
PCIe-Mini-SYNCHRO-2S One Channel Synchro 90V, Industrial Temp -40ºC to +85ºC
PCIe-Mini-SYNCHRO-2R One Channel Resolver 90V, Industrial Temp -40ºC to +85ºC
Append -CC for Conformal Coat
Optional Accessories
CBL-SYNCHRO-12 13 pin pigtail Cable, 12in length
Data Sheet – Link Here
