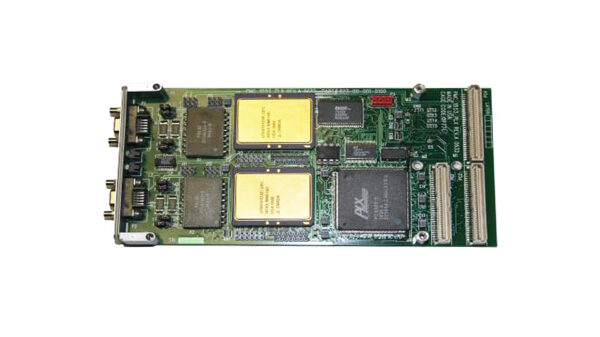

PMC-1553IO

DUAL UTMC 1553 SUMMIT CONTROLLER:BC,RT&BM ARINC-429 1 TX & 2 RX 2 CHANNELS RS-232/422/485 8 BITS DIGITAL I/OAND 1PPS INPUT

  • Dual Channel Aeroflex SUMMIT UT69151DX
  • Programmable BC / RT / BM
  • On Board Transformers and Transceivers
  • Long stub / Short stub
  • 128Kbytes Sram Per Channel
  • 2 Channel Full duplex Sync and Async serial ports
  • Programmable Mode RS-232, RS-422 And RS-485
  • Data rate up to:
  • 115,000 bps in asynchronous mode
  • 2 Mbps in synchronous mode

Share this product

LinkedIn

Got Questions?

PMC-1553IO

DUAL UTMC 1553 SUMMIT CONTROLLER:BC,RT&BM ARINC-429 1 TX & 2 RX 2 CHANNELS RS-232/422/485 8 BITS DIGITAL I/OAND 1PPS INPUT

  • Dual Channel Aeroflex SUMMIT UT69151DX
  • Programmable BC / RT / BM
  • On Board Transformers and Transceivers
  • Long stub / Short stub
  • 128Kbytes Sram Per Channel
  • 2 Channel Full duplex Sync and Async serial ports
  • Programmable Mode RS-232, RS-422 And RS-485
  • Data rate up to:
  • 115,000 bps in asynchronous mode
  • 2 Mbps in synchronous mode

The MIL-STD-1553 system features dual redundant channels (A+B), 128 Kbyte SRAM, programmable BC/RT/BM modes, 78 ohm transformers, long/short stub capability, and selectable internal/external clock13. The ARINC-429 option includes 2 receive and 1 transmit channel, label matching for receiver channel, 64Kword SRAM buffer, and software-selectable data rates of 12.5 or 100 kbits/second with auto slew rate adjustment24. It also offers an 8-bit digital I/O bus with 4 inputs, 4 outputs, and 1 PPS input. The serial ports option provides programmable synchronous and isosynchronous data rates, asynchronous capabilities, and programmable RS-232/422/485 mode. Additional features include temperature options (0 to +70°C or -40 to +85°C), conformal coating, 33/66MHz PMC clock, 5.0v or 3.3v VIO, low power consumption, LED status, available software libraries for Windows, Linux, and VxWorks, and PICMG compliance

ARINC-429
  • 2 Receives and 1 Transmit
  • Label matching for receiver channels
  • One 64Kword SRAMs buffer for storing data
  • Software selected data rate of 12.5/100kbits/s with auto slew rate adjustment
  • Programmable word length selection, with the parity bit generated automatically
  • Burst and Continuous Mode for transmit data at the rate of 100 to 1200msec
8 Bits Digital I/O
  • 4 Inputs
  • 4 Outputs
  • 1PPS Input for GPS Signal
Serial Ports Sync/Async
PMC interface
  • VIO 3.3 & 5.0 volt
  • 33/66 Mhz
  • 32 bit Addr. Data
  • Interrupts
  • DMA
I/O
  • 1553 bus levels
  • TTL (5v) clock
  • RS-232 RS-422 And RS-485
  • Front panel or rear I/O Option
Operating: Environmental
  • Operating temperature
    • Commercial: 0 to +70 °C
    • Optional: -40°C to +85°C
  • Size: Single wide PMC 2.92″ x 5.87″
  • Airflow requirement: .5 CFM
  • Humidity: 5 to 90% (non-cond.)
  • Altitude: 0 to 20’000 ft
Ordering Information
  • Part Number: PMC-1553IO-11 – (1) MIL-1553, BC/RT/BM + 8 Bits Digital I/O
  • Part Number: PMC-1553IO-21 – (1) MIL-1553 + 8 Bits Digital I/O + 2 Serial Ports
  • Part Number: PMC-1553IO-31 – (1) MIL-1553 + 8 Bits Digital I/O + ARINC-429 + 2 Serial Ports
  • Part Number: PMC-1553IO-12 – (2) MIL-1553, BC/RT/BM + 8 Bits Digital I/O
  • Part Number: PMC-1553IO-22 – (2) MIL-1553 + 8 Bits Digital I/O + 2 Serial Ports
  • Part Number: PMC-1553IO-32 – (2) MIL-1553 + 8 Bits Digital I/O + ARINC-429 + 2 Serial Ports
  • Other Configuration available – check with Factory
  • Part Number: PMC-1553IO-(x)-I – Same as above with -40ºC to +85 ºC Temperature rating
  • Part Number: PMC-1553IO-(x)-y-FP – Same as above with Front Panel Access Only
  • Part Number: PMC-1553IO-(x)-y-RP – Same as above with Rear Panel Access Only
Optional Accessories
  • Part Number: EngKit-1553-micro – 2 T’s, 2 Terminators, 1 16 inch cables
  • Part Number: CBL-1553-micro – Standard-Standard 16 inch 1553 cable

Data Sheet – Link Here

  • Dual Channel Aeroflex SUMMIT UT69151DX
  • Programmable BC / RT / BM
  • On Board Transformers and Transceivers
  • Long stub / Short stub
  • 128Kbytes Sram Per Channel
  • 2 Channel Full duplex Sync and Async serial ports
  • Programmable Mode RS-232, RS-422 And RS-485
  • Data rate up to:
  • 115,000 bps in asynchronous mode
  • 2 Mbps in synchronous mode



Mechanical Interface

Switched Mezzanine Card (XMC) Interface confirming to ANSI/VITA 42.0-2008 (Auxiliary Standard)

Standard single-width (149mm x 74mm)

Electrical InterfacePCI Express x4 Link (Base Specification 2.1) compliant interface conforming to ANSI/VITA 42.3-2006 (PCI Express Protocol Layer Standard)
PCI Express SwitchPI7C9X2G312GP (Pericom)
PCI Express to PCI BridgeXIO2001 (Texas Instruments)
User configurable FPGA

TXMC639-10R: XC7K160T-2FBG676I (AMD)

TXMC639-11R: XC7K325T-2FBG676I (AMD)

SPI-FlashMT25QL128 (Micron) 128 Mbit (contains TXMC639 FPGA BRD) or compatible; +3.3 V supply voltage
DDR3 RAM2x MT41K256M16TW-107 (Micron) 256Meg x 32 bit
Board Configuration ControllerLCMXO2-7000HC (Lattice)
ADCLTC2320 -16 (Analog Devices)
DACAD5547BRUZ (Analog Devices)
A/D Channels

TXMC639-10R: 8 Differential 16bit A/D Channels

TXMC639-11R: 16 Differential 16bit A/D Channels

Input Configuration per BCC Device:

Input Voltage Ranges:

Differental : ±20.57 V, ±10.28 V or ±5.14 V

(Single-Ended: ±10.28 V, ±5.14 V or ±2.57 V)

All analog inputs are connected via an impedance converter and a second operation amplifier for level adjustment and filtering to the differential ADC inputs.

The -3 dB limit of this input stage is at approx. 8MHz

D/A Channels

TXMC639-10R: 4 Single-Ended 16 Bit D/A Channels

TXMC639-11R: 8 Single-Ended 16 Bit D/A Channels

Output range configurable per D/A channel.
Simultaneous Conversion for all D/A Channels.

Maximum single-ended Output Voltage – Vout: ±10 V

Maximum Output Drive Current for each Output: 10 mA

Maximum Capacitive Load for each Output: 1000 pF

Typical Settling Time for a 10 mA / 1000 pF: < 1 µs

Digital Front I/O Channels

32 digital I/O Lines

  • Default configured as 32 ESD-protected TTL lines
  • 16 I/O lines are configurable as 8 differential RS422 I/O lines with individual Termination enable.
Digital Rear I/O Channels

64 direct FPGA I/O lines to P14 Rear I/O connector

  • Can be used as single-ended or differential I/O
  • FPGA I/O Standard: LVCMOS25, LVTTL25 and LVDS25

4 MGT line to P16 Rear I/O connector

  • Each line consists of one differential RX and TX pair.
  • Transmission speeds of up to 3.125 Gb/s are possible.
Front I/OFront I/O Samtec – ERF8_050_01_L_D_RA_L_TR
P14 Rear I/O64 pin Mezzanine Connector (Molex 71436-2864 or compatible)
P16 Rear I/O114 pin Mezzanine Connector (Samtec – ASP-105885-01)
Power Requirements 1)

Depends on FPGA design

With TXMC639 Board Reference Design / without external load

 typical @ +12 V VPWRtypical @ +5 V VPWR
TXMC639-10R1.1 A2.5 A
TXMC639-11R1.3 A3.3 A
Temperature RangeOperating: – 40 °C to + 85 °C
Storage: – 55 °C to + 125 °C
MTBF 1)157 000 h to 161 000 h
Humidity5% – 95% non-condensing
Weight140 g

1) depends on variant, for further details see User Manual



TXMC639-10R



8x Analog In, 4x Analog Out, XC7K160T-2FBG676 Kintex™ 7 FPGA

AMD Kintex™ 7 FPGA (XC7K160T-2FBG676), 1GB DDR3, 8x Analog In, 4x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O

TXMC639-11R



16x Analog In, 8x Analog Out, XC7K325T-2FBG676 Kintex™ 7 FPGA

AMD Kintex™ 7 FPGA (XC7K325T-2FBG676), 1GB DDR3, 16x Analog In, 8x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O

SOFTWARE

Device Driver for Board Family with Reconfigurable FPGA

Data Sheet – Link-Here

User Manual – Link-Here
