- Supports up to four (4) single-width VITA© 93 QMC modules
- PCIe Gen3 x8 host interface (Gen2 fallback compatible)
- Backward compatible with PCIe r1.0a / 1.1 / 2.0 / 3.0
- Provides up to PCIe Gen2 x4 lanes per QMC site
- Each QMC slot (Slot 1 – Slot 4) provides a Px2 I/O interface, supporting up to 40 single-ended or 20 differential pairs per slot
- VITA 93 dual-connector topology per site for Host and I/O
- Front-panel I/O via high-density connectors
- Per-site fused power protection
- Full-height, half-length PCIe form factor 111.15 mm (4.376 in) x 167.65 mm (6.6 in)
PCIe-4QMC
PCIe-4QMC Carrier — Four VITA 93 QMC Sites
- Supports up to four (4) single-width VITA© 93 QMC modules
- PCIe Gen3 x8 host interface (Gen2 fallback compatible)
- Backward compatible with PCIe r1.0a / 1.1 / 2.0 / 3.0
- Provides up to PCIe Gen2 x4 lanes per QMC site
- Each QMC slot (Slot 1 – Slot 4) provides a Px2 I/O interface, supporting up to 40 single-ended or 20 differential pairs per slot
- VITA 93 dual-connector topology per site for Host and I/O
- Front-panel I/O via high-density connectors
- Per-site fused power protection
- Full-height, half-length PCIe form factor 111.15 mm (4.376 in) x 167.65 mm (6.6 in)
Share this product
LinkedIn
PCIe-4QMC
PCIe-4QMC Carrier — Four VITA 93 QMC Sites

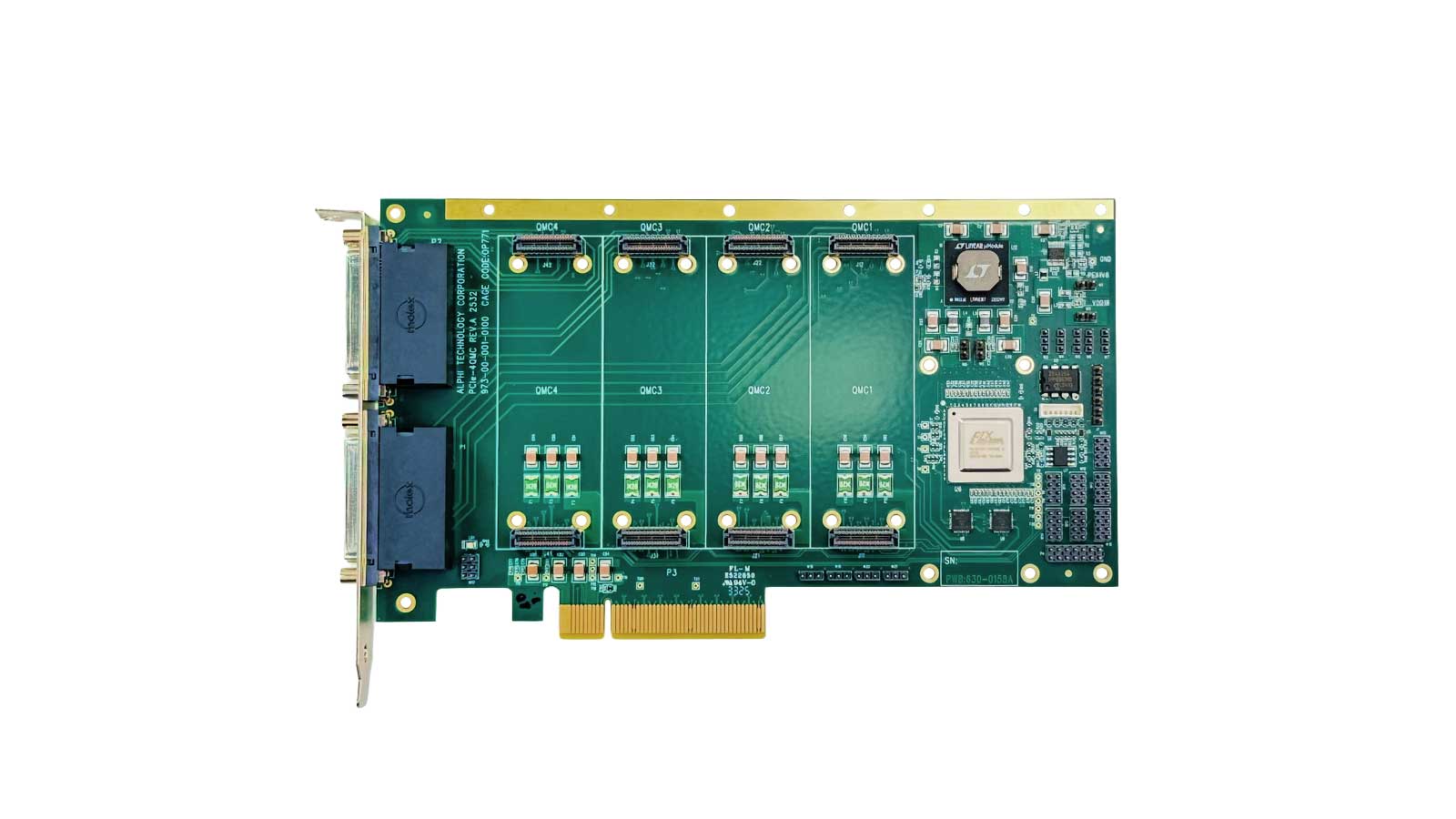

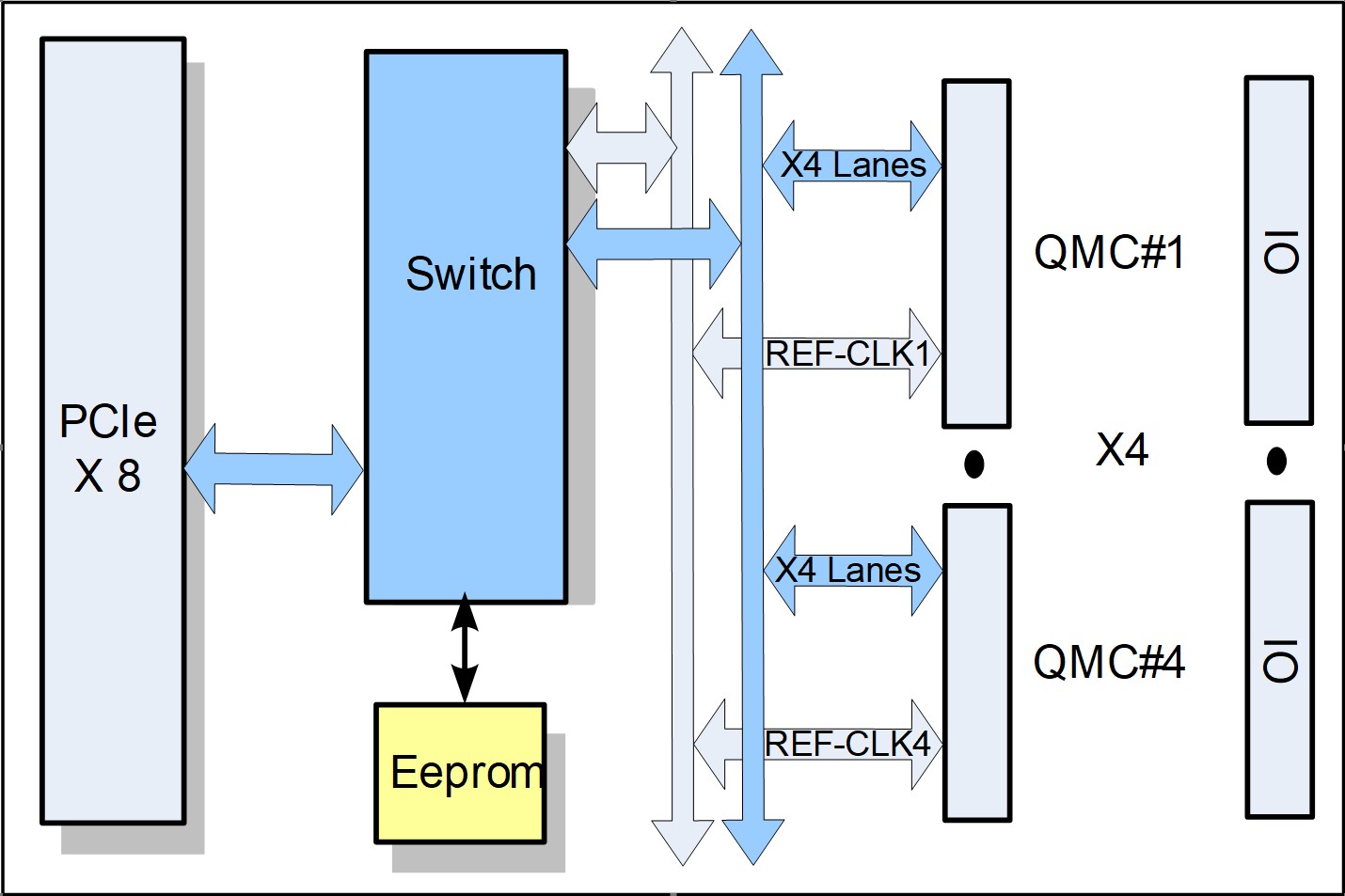

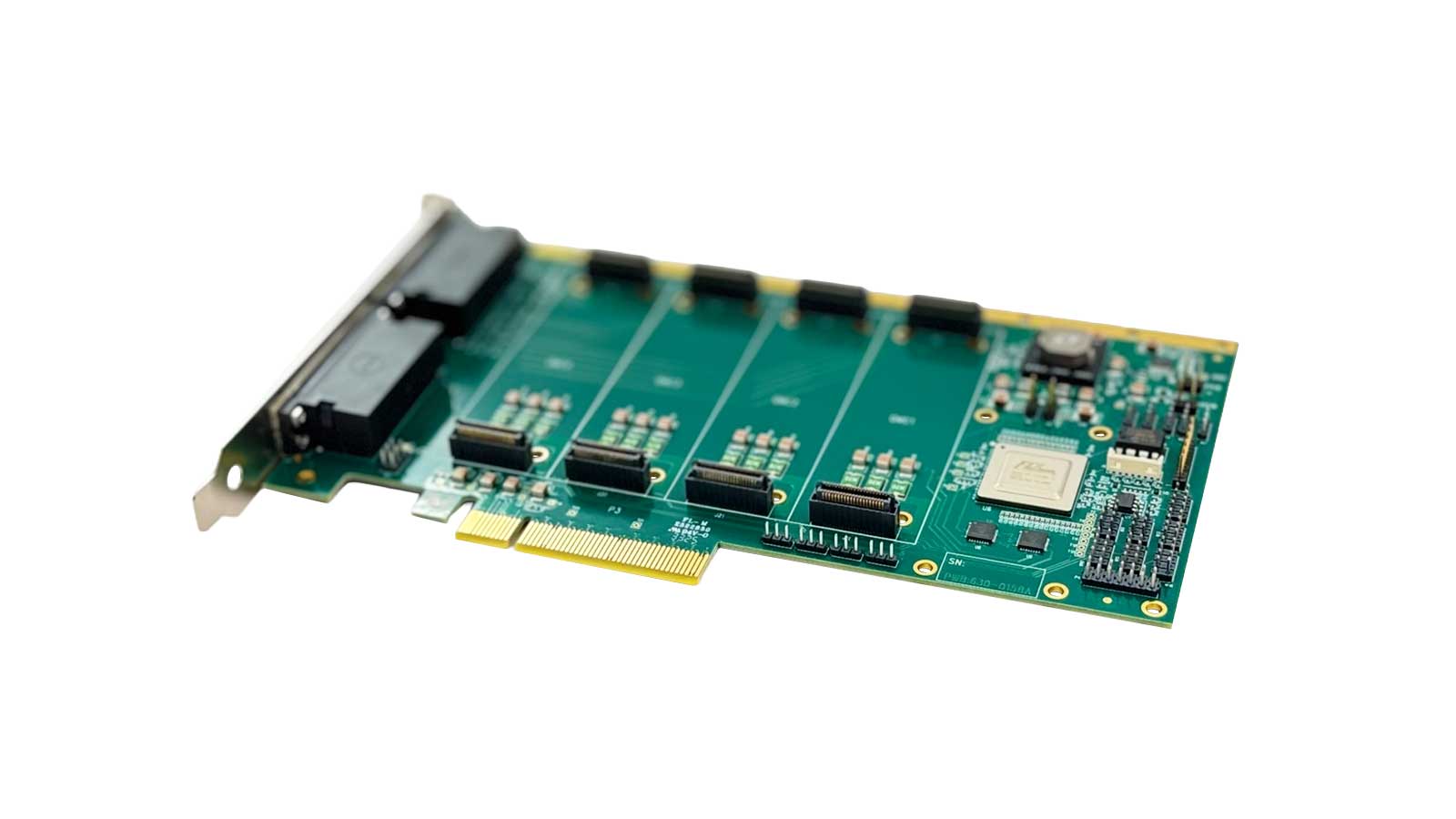

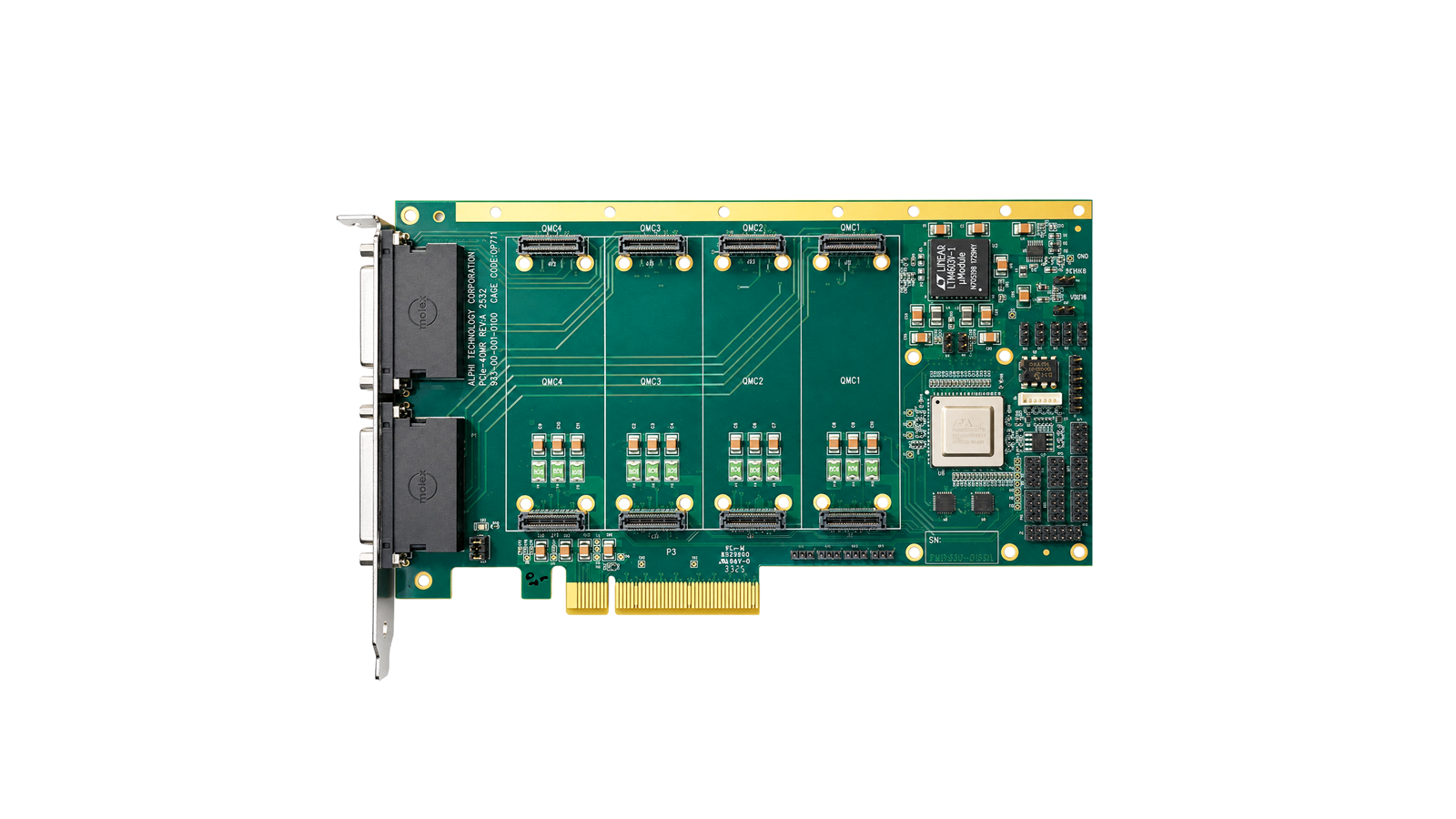

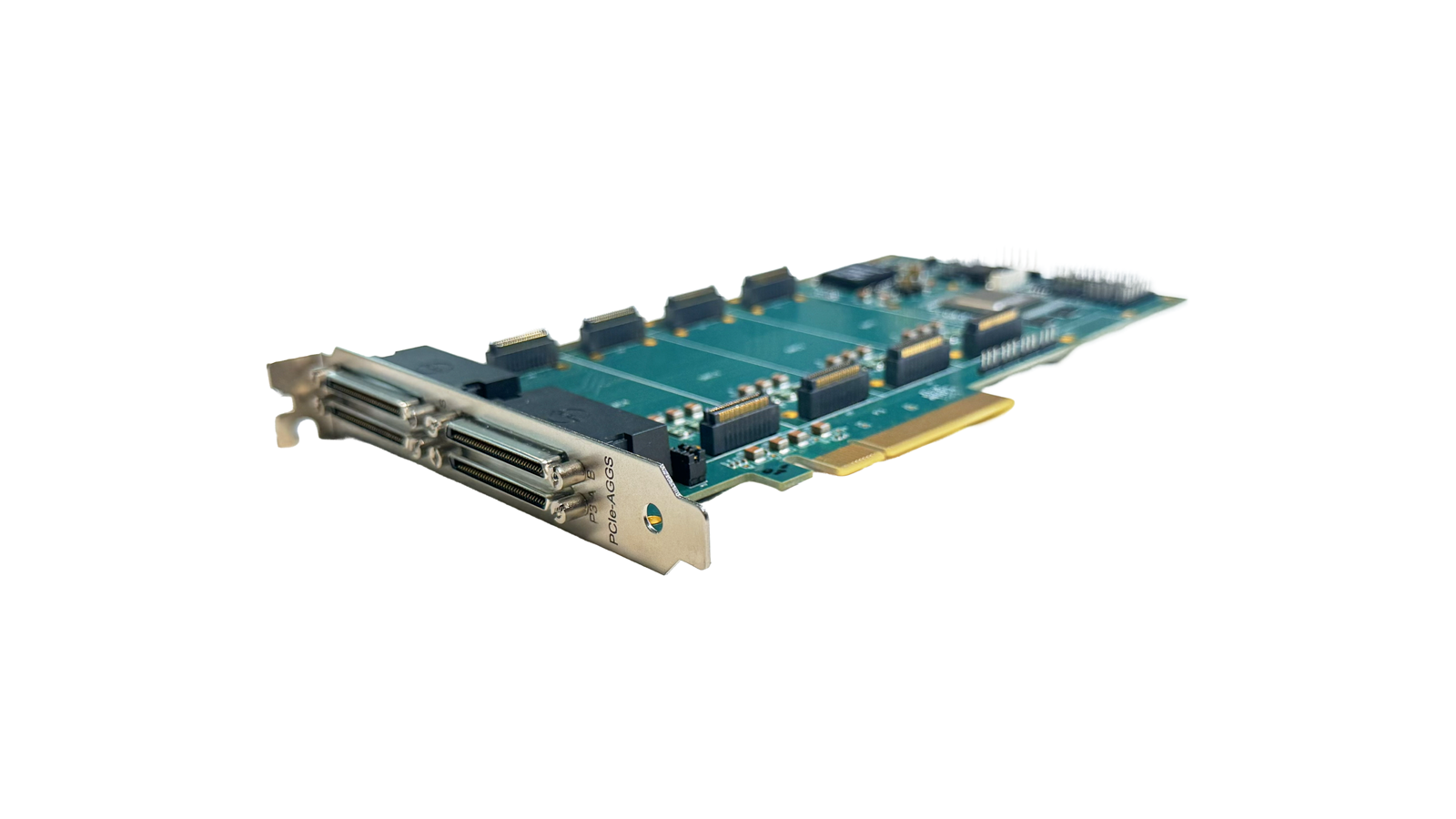

The ALPHI PCIe-4QMC Carrier is a high-performance PCI Express® expansion card that hosts up to four single-width VITA 93 (QMC) mezzanine modules. It integrates high-speed I/O, signal-processing, and communication functions into workstation, server, or embedded PC platforms. Each QMC site connects through a dedicated PCIe Gen2 x4 interface via an on-board switch, providing exceptional throughput and modular flexibility. Air and conduction-cooled mechanical options support deployment in both commercial and rugged environments.
Technical Specifications:
- Meets ANSI/VITA 93.0 (QMC) Standard
- Four single-width modules (26 × 78.25 mm)
- PCIe Gen2 x4 interface per site
- Dual high-speed Host and I/O connectors
- Differential and single-ended I/O support
- 100MHz refclk and programmable clocks
- I²C/SMBus management and FRU EEPROM
- 12V/3.3V power inputs, 25W per site typical
- Air or conduction-cooled options
- System and site-level reset control
PCIe Bus Features:
- PCI Express Gen3 x8 edge connector (Gen3 compatible)
- High-speed switch fabric to four QMC sites
- Up to 64GT/s aggregate throughput
- Transparent PCIe endpoint operation
- Hot Reset and Link Training per lane
- Compliant with PCIe Base Spec 4.0
- Backward compatible with PCIe 3.0/2.0
Operating Environment:
- Operating Temperature:
- Commercial: 0°C to +70°C
- Industrial: –40°C to +85°C
- Non-Operating Temperature: –45°C to +125°C
- Airflow Requirement: 5 CFM minimum
- Humidity: 5% to 90% (non-condensing)
- Altitude: 0 – 10,000 ft
Mechanical: Environmental:
- Form Factor: Full-height, half-length PCIe add-in card (111 mm × 167.65 mm typ.)
- Power: Approx. 25W per site (typical) derived from +12V and +3.3V PCIe slot rails or auxiliary ATX power connector for full 100W support

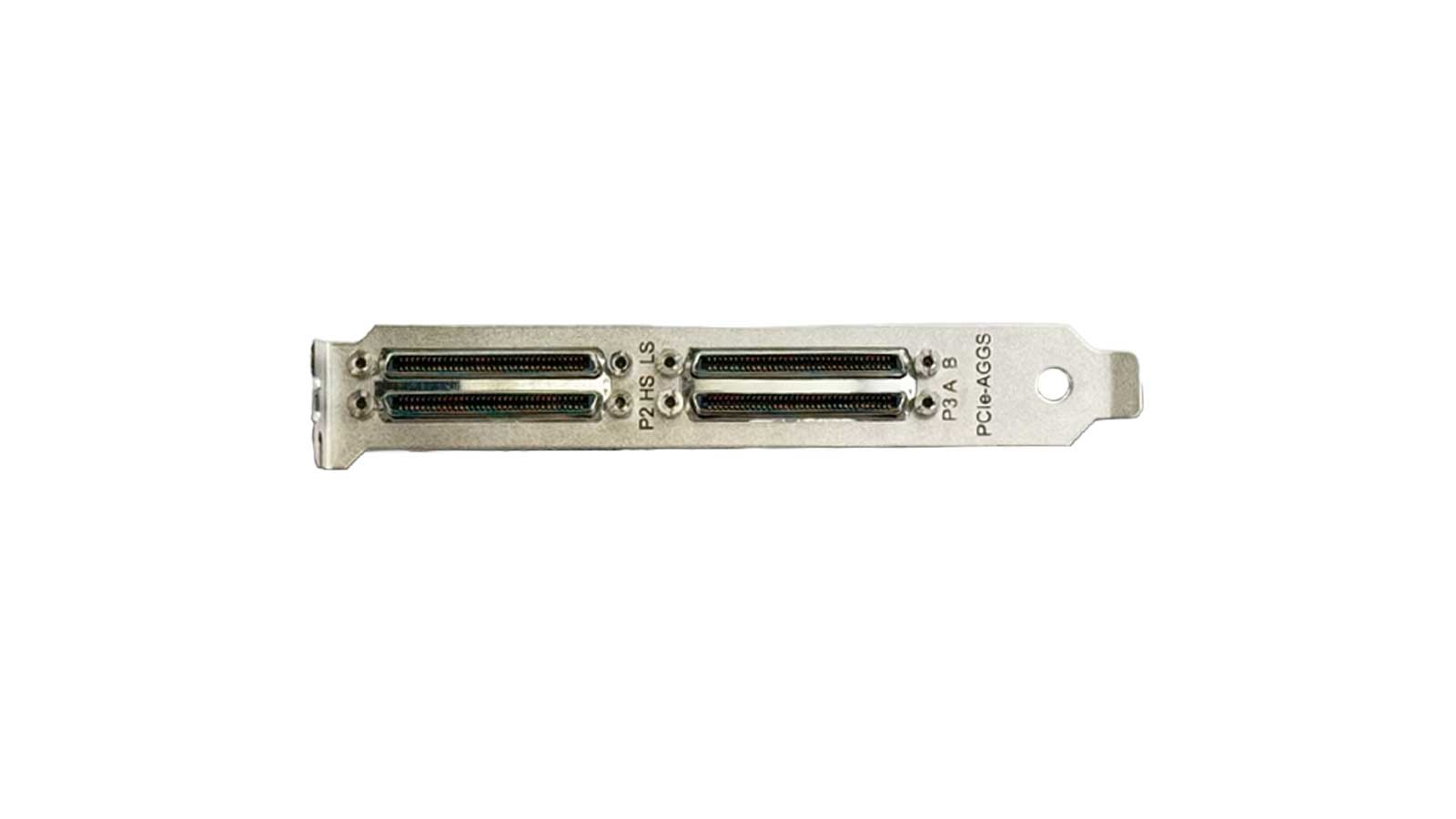

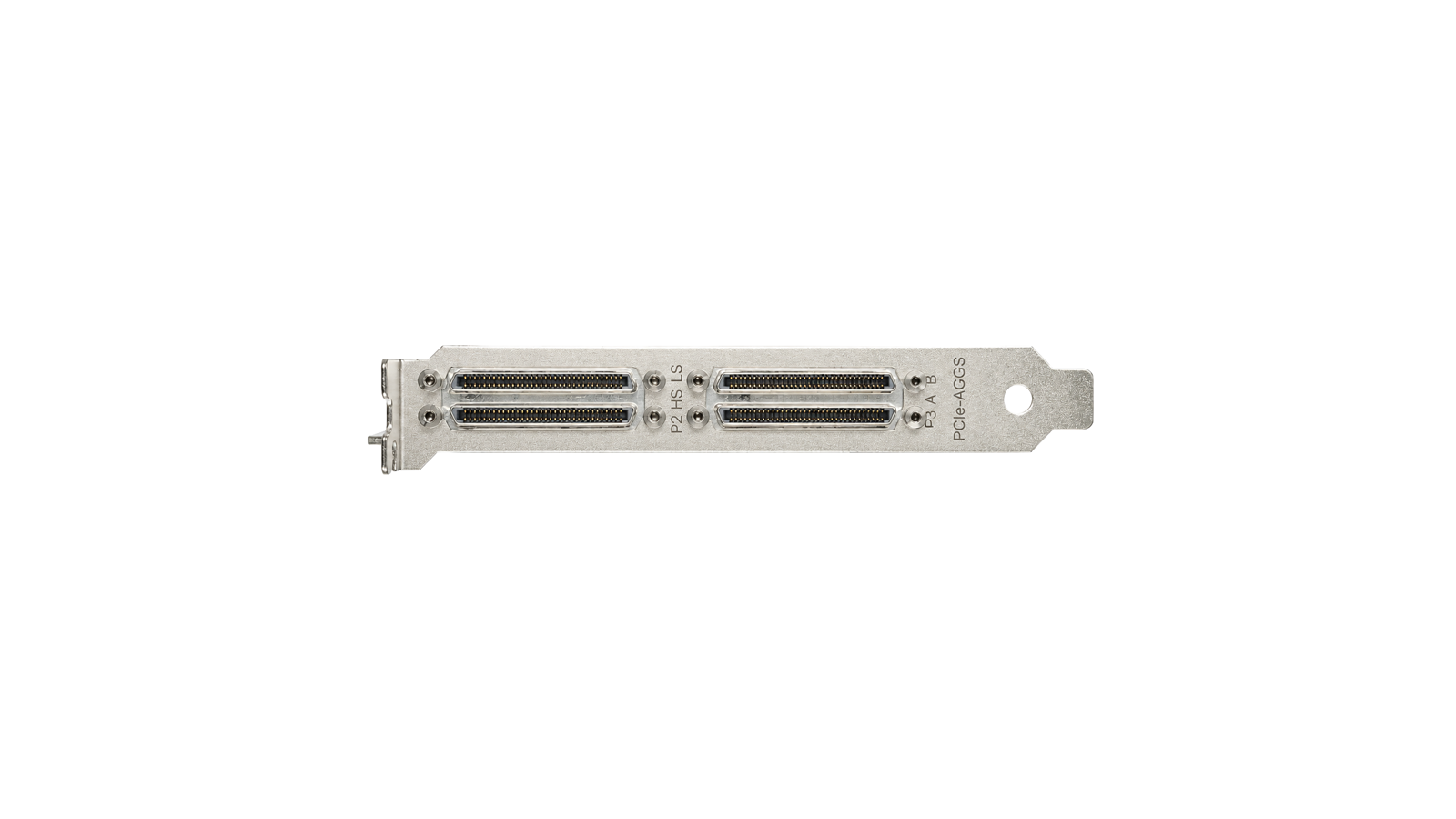

- Front-Panel I/O: VHDCI connectors with jack-screw retention for secure mating
- Vibration: 0.5 G (RMS), 20 – 2000Hz random
- Shock: 20G, 11ms, ½ sine pulse
- Weight: 120 g (≈ 4.2oz)
- MTBF: > 250,000 hours (calculated)
QMC Interface Features:
- Dual-stack Molex VHDCI connectors for front-panel I/O
- High-density 68-pin per connector stack supporting differential and single-ended signals
- Routed per VITA 93 I/O map for flexible module-specific pin assignments
- Supports up to 10Gb/s per differential pair (controlled impedance routing)
- Ground shielding and strain-relief hardware for signal integrity and durability
- Compatible with air- or conduction-cooled configurations
Software Support:
- LabVIEW® Support
- Linux® drivers
- Windows® 10/11 drivers
- QNX® drivers
- VxWorks® drivers
Typical Applications:
- For applications requiring low cost, high density I/O or unique I/O combinations, the PCIe-4QMC is the perfect solution.
- For a complete list of VITA 93 QMC Modules offered by Alphi Technology please visit our WEB site at www.alphitech.com
Ordering & Options
- Part Number: PCIe-4QMC Four-Site VITA 93 QMC Carrier Board
Operating Temperature:
- C: 0°C to +70°C
- I: -40°C to +85°C
- CC: Conformal Coated HumiSeal 1A33
Optional Accessories
- Part Number: TB-68VHDCI Terminal Block 68 VHDCI to Screw Terminal
- Part Number: CBL-68VHDCI-1M 68-pin VHDCI male-to-male, Cable 1m
Data Sheet – Link Here
- Supports up to four (4) single-width VITA© 93 QMC modules
- PCIe Gen3 x8 host interface (Gen2 fallback compatible)
- Backward compatible with PCIe r1.0a / 1.1 / 2.0 / 3.0
- Provides up to PCIe Gen2 x4 lanes per QMC site
- Each QMC slot (Slot 1 – Slot 4) provides a Px2 I/O interface, supporting up to 40 single-ended or 20 differential pairs per slot
- VITA 93 dual-connector topology per site for Host and I/O
- Front-panel I/O via high-density connectors
- Per-site fused power protection
- Full-height, half-length PCIe form factor 111.15 mm (4.376 in) x 167.65 mm (6.6 in)
| Mechanical Interface | Switched Mezzanine Card (XMC) Interface confirming to ANSI/VITA 42.0-2008 (Auxiliary Standard) Standard single-width (149mm x 74mm) | |||||||||
| Electrical Interface | PCI Express x4 Link (Base Specification 2.1) compliant interface conforming to ANSI/VITA 42.3-2006 (PCI Express Protocol Layer Standard) | |||||||||
| PCI Express Switch | PI7C9X2G312GP (Pericom) | |||||||||
| PCI Express to PCI Bridge | XIO2001 (Texas Instruments) | |||||||||
| User configurable FPGA | TXMC639-10R: XC7K160T-2FBG676I (AMD) TXMC639-11R: XC7K325T-2FBG676I (AMD) | |||||||||
| SPI-Flash | MT25QL128 (Micron) 128 Mbit (contains TXMC639 FPGA BRD) or compatible; +3.3 V supply voltage | |||||||||
| DDR3 RAM | 2x MT41K256M16TW-107 (Micron) 256Meg x 32 bit | |||||||||
| Board Configuration Controller | LCMXO2-7000HC (Lattice) | |||||||||
| ADC | LTC2320 -16 (Analog Devices) | |||||||||
| DAC | AD5547BRUZ (Analog Devices) | |||||||||
| A/D Channels | TXMC639-10R: 8 Differential 16bit A/D Channels TXMC639-11R: 16 Differential 16bit A/D Channels Input Configuration per BCC Device: Input Voltage Ranges: Differental : ±20.57 V, ±10.28 V or ±5.14 V (Single-Ended: ±10.28 V, ±5.14 V or ±2.57 V) All analog inputs are connected via an impedance converter and a second operation amplifier for level adjustment and filtering to the differential ADC inputs. The -3 dB limit of this input stage is at approx. 8MHz | |||||||||
| D/A Channels | TXMC639-10R: 4 Single-Ended 16 Bit D/A Channels TXMC639-11R: 8 Single-Ended 16 Bit D/A Channels Output range configurable per D/A channel. Maximum single-ended Output Voltage – Vout: ±10 V Maximum Output Drive Current for each Output: 10 mA Maximum Capacitive Load for each Output: 1000 pF Typical Settling Time for a 10 mA / 1000 pF: < 1 µs | |||||||||
| Digital Front I/O Channels | 32 digital I/O Lines
| |||||||||
| Digital Rear I/O Channels | 64 direct FPGA I/O lines to P14 Rear I/O connector
4 MGT line to P16 Rear I/O connector
| |||||||||
| Front I/O | Front I/O Samtec – ERF8_050_01_L_D_RA_L_TR | |||||||||
| P14 Rear I/O | 64 pin Mezzanine Connector (Molex 71436-2864 or compatible) | |||||||||
| P16 Rear I/O | 114 pin Mezzanine Connector (Samtec – ASP-105885-01) | |||||||||
| Power Requirements 1) | Depends on FPGA design With TXMC639 Board Reference Design / without external load
| |||||||||
| Temperature Range | Operating: – 40 °C to + 85 °C Storage: – 55 °C to + 125 °C | |||||||||
| MTBF 1) | 157 000 h to 161 000 h | |||||||||
| Humidity | 5% – 95% non-condensing | |||||||||
| Weight | 140 g |
1) depends on variant, for further details see User Manual
TXMC639-10R
| 8x Analog In, 4x Analog Out, XC7K160T-2FBG676 Kintex™ 7 FPGA AMD Kintex™ 7 FPGA (XC7K160T-2FBG676), 1GB DDR3, 8x Analog In, 4x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O |
TXMC639-11R
| 16x Analog In, 8x Analog Out, XC7K325T-2FBG676 Kintex™ 7 FPGA AMD Kintex™ 7 FPGA (XC7K325T-2FBG676), 1GB DDR3, 16x Analog In, 8x Analog Out, 32x digital Front I/O, 64x direct FPGA Rear I/O Lines and 4x MGTs Rear I/O |
