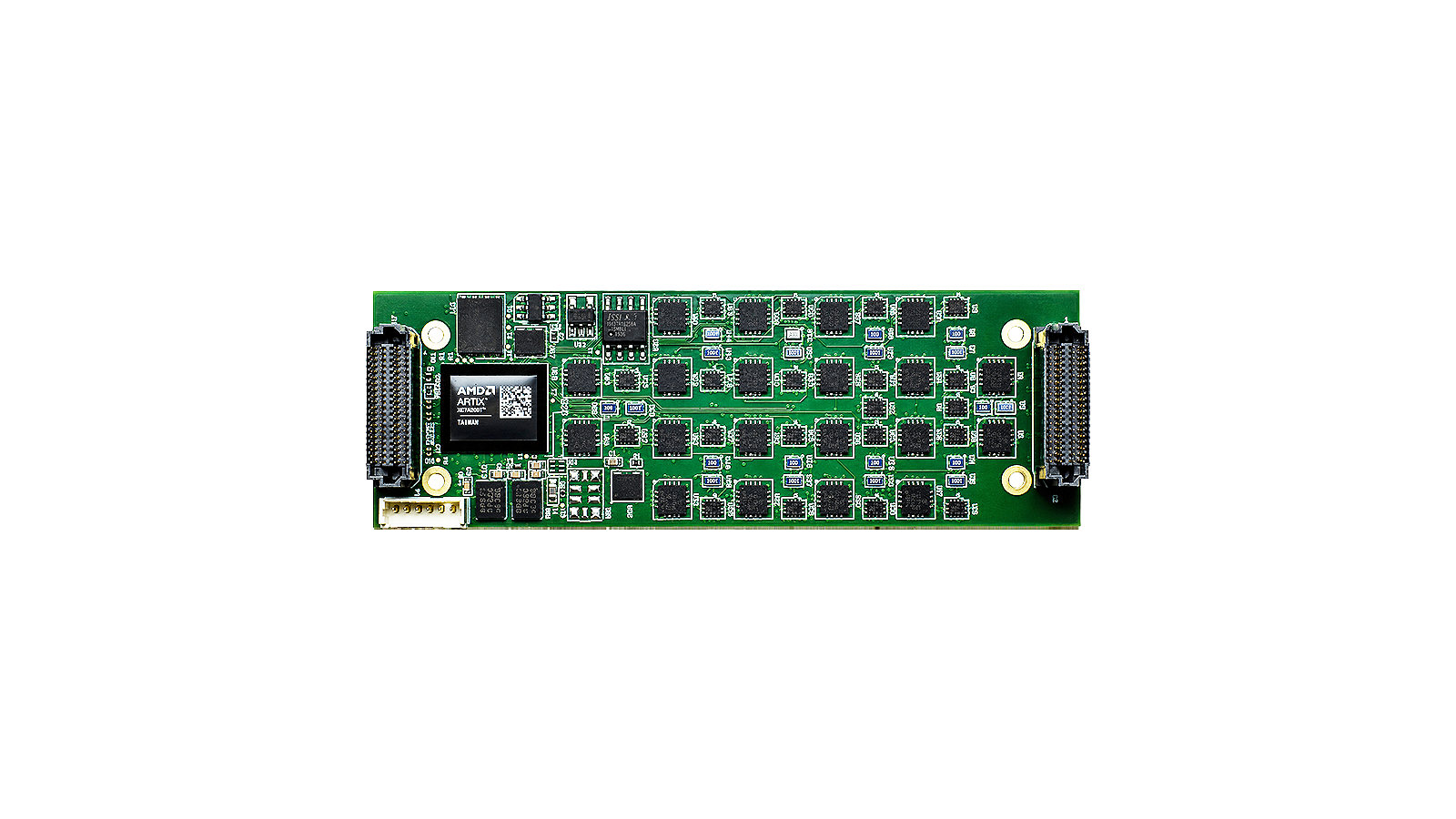

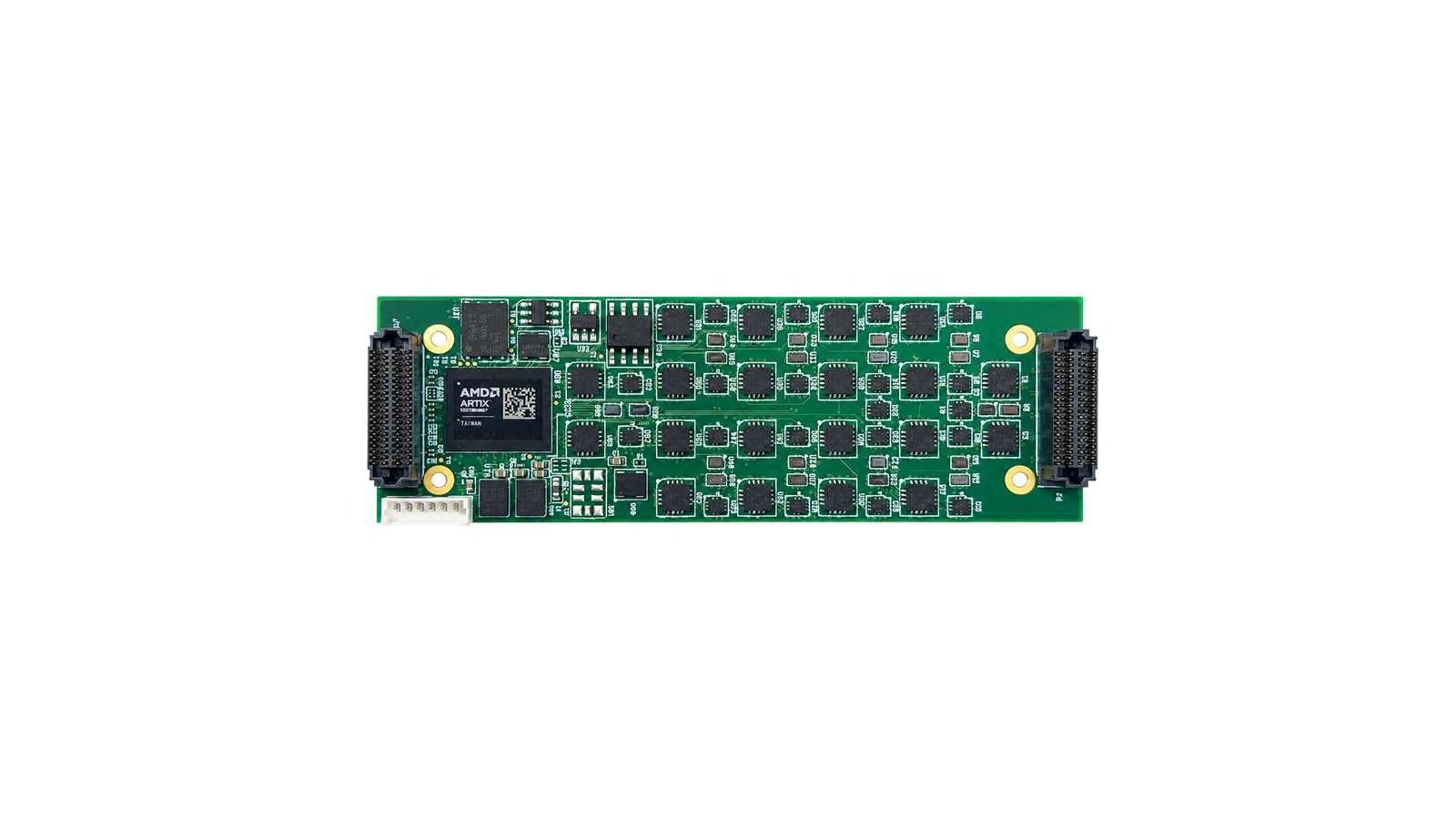

QMC-XCAU15P
QMC PCIe x4 USER RECONFIGURABLE AMD-XILINX ARTIX ULTRASCALE+ FPGA 20 Channels RS-422/485 OR 40 Channels LVTTL
- QMC PCI Express x4 lane interface
- QMC 26mm x 78.25 mm
- User-reconfigurable AMD-Xilinx Artix UltraScale+ FPGA
- Up to 20 Pairs RS-422/485 bidirectional channels, 20Mb/s data rate per channel, software-selectable half or full duplex, or Up to 40 Channels LVTTL
- Software-selectable 120Ω termination
- Software-programmable interrupts for Change-of-State/Level detection
- High Precision User Clock PPB Input on Board
- Optional ARINC-429 Receiver
Share this product
QMC-XCAU15P
QMC PCIe x4 USER RECONFIGURABLE AMD-XILINX ARTIX ULTRASCALE+ FPGA 20 Channels RS-422/485 OR 40 Channels LVTTL
QMC-XCAU15P
QMC PCIe x4 USER RECONFIGURABLE AMD-XILINX ARTIX ULTRASCALE+ FPGA 20 Channels RS-422/485 OR 40 Channels LVTTL
Share this product
The QMC-XCAU15P-FPGA has 40 I/O channels that can monitor or control the on/off (high/low) status of up to 20 differential devices or up to 40 channels LVTTL, software selectable in groups of 2. Each channel can be used as an input or output. The Input channels can be configured with interrupts to detect a change of state, or level detection of any bit. The RS-422/485 input threshold includes hysteresis for increased noise immunity.
Applications
- Process control
- Industrial control
- Precision instrumentation
- Data acquisition systems (DAS)
- Multiaxis positioning systems
Digital I/O Specifications
- Up to 20 channel pairs RS-422/485, or Up to 40 channels LVTTL
- 20Mb/s data rate per RS422/485 channel
- Optional High Precision PPB User Clock
- Half or full duplex and 120Ω on-board termination, software-selectable
- High input impedance supports 256 nodes
- Enhanced ESD protection to ±25kV
Available Software Drivers
- C library dll’s
- Linux® drivers
- Windows® drivers
- VxWorks® drivers
Mechanical
- Size: QMC Module (26mm x 78.25 mm)
- Power: 240mA
- Vibration: 0.5G, 20-2000Hz rand
- Shock: 20G, 11ms, ½ sine
- Weight: 10g (0.4oz)
- MTBF: >250,000 hours
Operating Environment
- Operating temperature Industrial: -40ºC to +85ºC
- Airflow requirement: 5CFM
- Humidity: 5 to 90% (non-cond)
- Altitude: 0 to 10,000 feet
Ordering Information
QMC-XCAU15P-FPGA : XCAU15P with 20 Channels differential RS-422/485 or 40 LVTTL, Industrial Temp: -40ºC to +85
QMC-XCAU15P-FPGA-1 : XCAU15P 20 Channels differential RS-422/485 or 40 LVTTL,1 Ch RX ARINC-429, High Precision 50MHZ Clock Input, Industrial Temp: -40ºC to +85ºC
Data Sheet – Link Here
