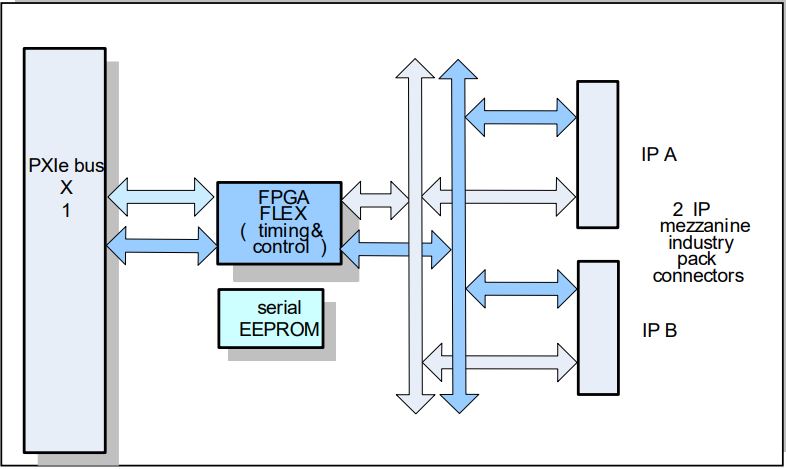

Industry Pack Specifications

• Meets ANSI/VITA 4-1995 standards.
• Supports 8/32 MHz synchronous operation.
• Supports ID, 128 byte I/O, interrupt, and 8 Mbyte memory spaces.
• Provides 2 interrupts per module.
• Two passive DMA channels are possible.
• Hardware self-timed per IP module, triggered via system reset and software control.
• Jumper or software time-out functions available.
• 5V and +/-12V resettable fuses per IP module.
• Supports 8/16-bit data on 3U boards and 32-bit data on 6U boards.

Operating Environment

• Operating Temperature:
  • Commercial: 0 to +70 °C
  • Optional: -40 °C to +85 °C
• Non-operating Temperature: -55 °C to +100 °C
• Airflow Requirement: 5 CFM
• Humidity: 5 to 90% (non-condensing)
• Altitude: Up to 10,000 feet

Mechanical Environment

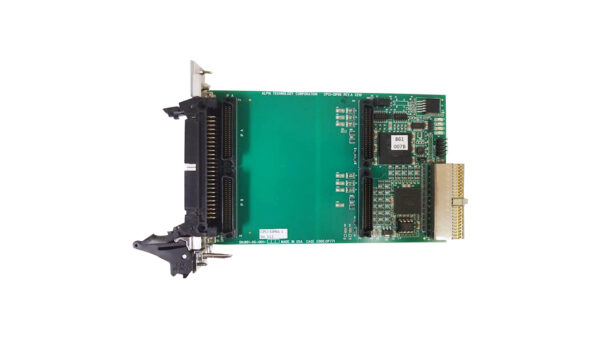

• Size: 3U CPCI module, 100mm x 160mm
• Power Consumption: 1 watt
• Vibration Resistance: 0.5G, 20-2000 Hz random
• Shock Resistance: 20G, 11 ms, ½ sine
• Weight: 5 ounces
• MTBF: >250,000 hours

PCIe Bus Controller Features

• PICMG 1.1 standards compliance
• Zero wait state burst operation, with PCI bus bursts to 264 MB/sec and local bus bursts to 264 MB/sec
• 2 DMA channels
• Direct master and slave data transfers
• PCI bus INTA# interrupt, up to 2 interrupts from each IP
