ATC-JTS64 — NVIDIA Jetson AGX Orin™ Industrial System with Dual Removable M.2 NVMe SSD Bays TEMPE, AZ — May 2026 Alphi Technology Corporation, a recognized leader in rugged embedded computing solutions for federal government, aerospace, and industrial applications, today announced the ATC-JTS64 — an AI Computing Platform built with the NVIDIA® Jetson AGX Orin™ Industrial system-on-module and I/O Expansion based upon VITA 93.0 QMC modules. This platform redefines what embedded AI edge computing can deliver in a compact, form factor, purpose-built for the most demanding security and industrial mission profiles.
The ATC-JTS64 delivers the full performance of NVIDIA’s 275 TOPS AI processing engine to the VITA 93 QMC ecosystem for the first time, enabling system architects to combine Jetson’s world-class AI inference and vision capabilities with the modular, field-proven QMC mezzanine expansion architecture trusted by security integrators worldwide. With integrated dual removable NVMe SSD bays, 10GbE Ethernet, quad-port Gigabit Ethernet, USB 3.2 high-speed connectivity, and a comprehensive isolated I/O suite, the ATC-JTS64 is engineered to serve as the intelligence hub for next-generation autonomous systems, mission computers, and AI-enabled edge nodes.
“The ATC-JTS64 is a watershed moment for embedded AI computing. By using NVIDIA’s Jetson AGX Orin with the VITA 93 QMC standard for the very first time, we are giving security and industrial system designers a platform that was simply not available anywhere in the market. This is not an incremental improvement — it is an entirely new category.”
— Engineering Team, Alphi Technology Corporation
Product Overview

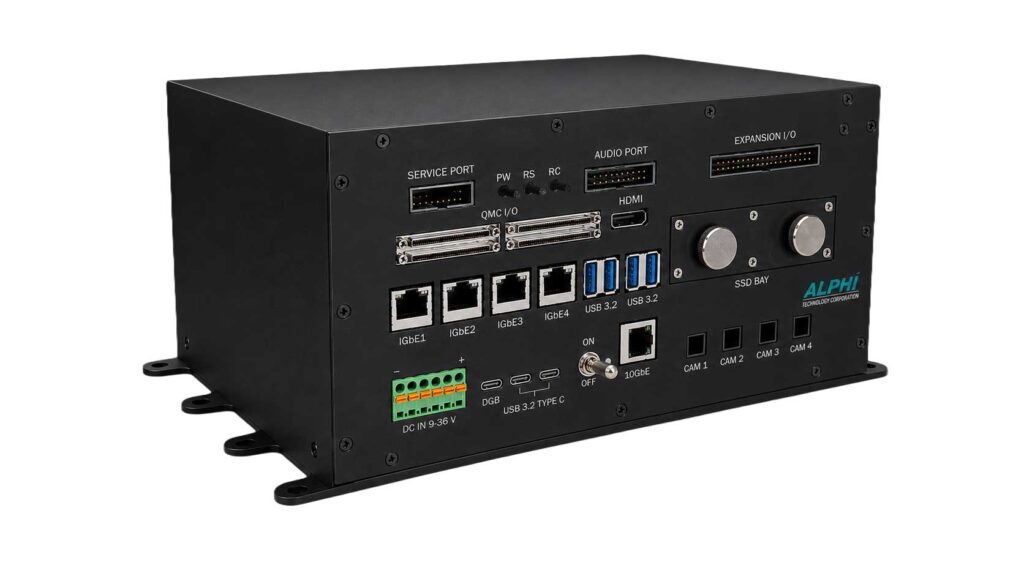

The ATC-JTS64 is a full-featured system comprised of the NVIDIA Jetson AGX Orin™ Industrial system-on-module and I/O Expansion with VITA 93.0 QMC. It supports up to four QMC mezzanine modules simultaneously through an on-board high-speed interface, enabling a rich and scalable I/O expansion ecosystem. The system integrates 10GbE Ethernet, quad-port Gigabit Ethernet, USB 3.2, and dual hot-removable M.2 NVMe SSD bays — all engineered for extreme reliability and field serviceability.
Key Highlights
- NVIDIA Jetson AGX Orin™ platform enabling the VITA 93.0 QMC I/O Expansion Ecosystem
- 275 TOPS AI processing — full NVIDIA Jetson AGX Orin™ Industrial performance in a compact, rugged form factor
- Operating temperature: -40°C to +85°C — built for demanding security and industrial environments
- Dual removable M.2 NVMe SSD bays for mission-critical field-swappable storage
- 10GBASE-T multi-gigabit Ethernet — full copper, no optical transceiver required
- Quad-port Gigabit Ethernet with four independent RJ45 ports for multi-network operation
- USB 3.2 high-speed connectivity via dual USB-C connectors
- DisplayPort 1.4 / HDMI 2.1 display output
- Fully isolated I/O suite: CAN, SPI, UART, I2C, RS-232/485/422 — all galvanically isolated
- 12–36 VDC wide-range input with intelligent power sequencing and Wake-on-LAN support
- VITA 93.0 QMC compliant — supports up to four QMC mezzanine modules simultaneously
- Up to 8× MIPI CSI-2 camera inputs for AI vision applications (optional)
Technical Specifications — ATC-JTS64 Industrial Platform
| Parameter | Specification |
|---|---|
| Processor Module | NVIDIA Jetson AGX Orin™ Industrial SOM (64GB, 275 TOPS) |
| Form Factor | Industrial Platform: ATC-JTS64 | Military Rugged: Contact Alphi Technology |
| QMC Mezzanine Slots | Up to 4 simultaneous QMC modules (VITA 93.0 compliant) |
| Storage | 64GB eMMC (on Jetson AGX Orin™) + 1× M.2 NVMe on System Board + 2× Removable M.2 Key M NVMe SSD bays (PCIe Gen4 ×4). Bootable from: eMMC, M.2 NVMe on board, or Removable M.2 NVMe. |
| 10GbE | 1× 10GBASE-T multi-gigabit Ethernet, shielded RJ45 with activity/link LEDs |
| 1GbE | 4× 1000BASE-T Gigabit Ethernet, shielded RJ45 with speed/link/activity LEDs |
| USB 3.2 | 2× USB-A 3.2 Gen1 (stacked) + 2× USB-C 3.2 |
| Display | DisplayPort 1.4 / HDMI 2.1 (HDMI CEC supported) |
| Internal PCIe Expansion | Optional – available for special applications in place of VITA 93 QMC support |
| CAN Bus | 2× galvanically isolated CAN channels with integrated DC-DC isolation |
| UART | 2× galvanically isolated UART; RS-232/485/422 configurable per port |
| SPI | 2× galvanically isolated SPI channels |
| I2C | 2× galvanically isolated I2C channels |
| Real-Time Clock | Supported with CR2032 battery (externally accessible) |
| I/O Expansion | 40-pin isolated I/O expansion connector with PWM, SPI, UART, I2C, CAN |
| Camera (CSI) | Up to 8× MIPI CSI-2 inputs via 120-pin camera connector (optional) |
| Audio | HD Audio codec with microphone, headphone, and speaker outputs; |
| Debug / Service | Micro-B USB debug port; JTAG header; force recovery and reset buttons |
| Wi-Fi / Bluetooth | 1× M.2 Key E slot + 2× SMB antenna connectors |
| MicroSD | 1× microSD card socket |
| Power Input | 12–36 VDC wide-range input; MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliant; DO-160-C/D/E/F/G |
| Wake-on-LAN | Hardware Wake-on-LAN from off-state; jumper-selectable |
| Thermal | On-board digital temperature sensor; Operating Temperature: -40°C to +85°C |
| Operating System | Linux (NVIDIA JetPack 6.x), Ubuntu, RTOS compatible |
| Compliance | VITA 93.0 QMC, PCIe Gen2/Gen4, USB 3.2, 1000BASE-T, 10GBASE-T |
Application Summary

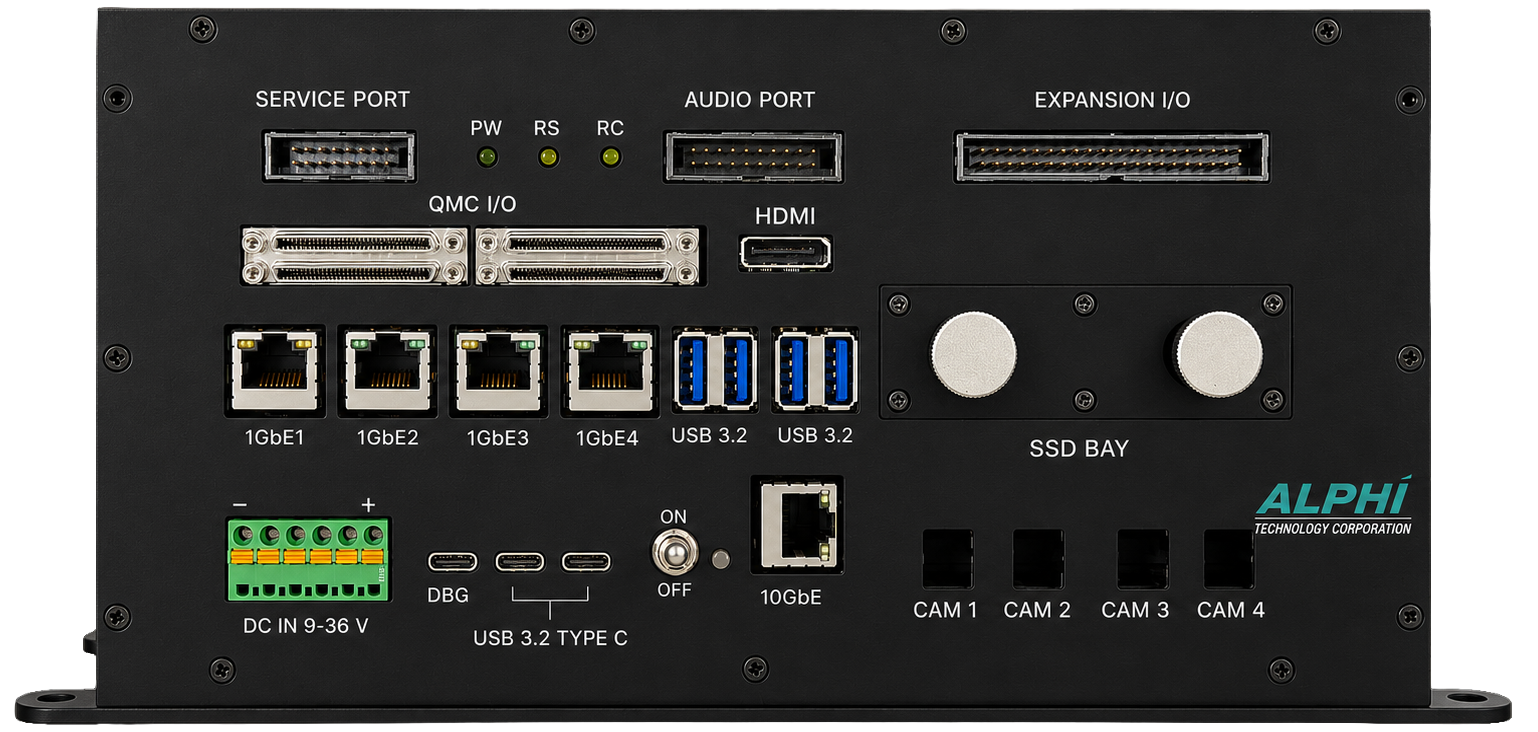

The ATC-JTS64 provides a full-featured intelligence hub for autonomous systems, automated situational analysis platforms , mission computers, and AI-enabled edge nodes. This Industrial Version provides front-panel access to all features and interfaces of the NVIDIA® Jetson AGX Orin™ Industrial system-on-module and I/O Expansion based upon VITA 93.0 QMC modules.
It can be used out-of-the-box for industrial applications once configured with the necessary expansion I/O — all interfaces are available on the front panel.
For applications, the ATC-JTS64 accelerates development by allowing engineers to design, test, and prototype directly on the Industrial Version before transitioning to the final industrial grade Configuration. The logic transports seamlessly from the Industrial Version (ATC-JTS64) to the Rugged Configuration — same internal hardware, same logic — in a rugged enclosure with connectors and cabling as required. Alphi Technology will work directly with the customer to define all interface connectors and cables.
This straightforward transition eliminates engineering delays associated with defining interfaces, sourcing connectors, and designing custom enclosures — enabling engineering teams to prove deployed concepts faster and get directly to logic development on an out-of-the-box system.
Availability & Ordering
The ATC-JTS64 is available now for evaluation and program qualification. Engineering samples, production units, and custom configurations are available through Alphi Technology’s standard ordering channels. Alphi’s in-house engineering team provides full design support, custom I/O configurations, and BSP bring-up services.
For pricing, availability, and technical inquiries:
Alphi Technology Corporation
1898 E. Southern Ave, Tempe, AZ 85282
About Alphi Technology Corporation
Alphi Technology Corporation has been a trusted developer of rugged embedded computing, I/O boards, and mission-critical hardware for defense, aerospace, and industrial applications for over 30 years. With deep expertise in VITA standards, real-time I/O, and custom FPGA-based solutions, Alphi delivers products that meet the stringent reliability, longevity, and performance demands of the world’s most challenging environments. Alphi holds AS9100 Rev D certification and is committed to delivering quality-first engineering solutions to customers worldwide.
